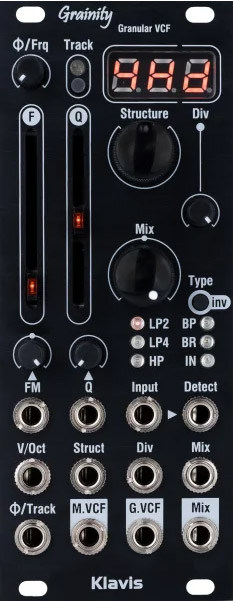

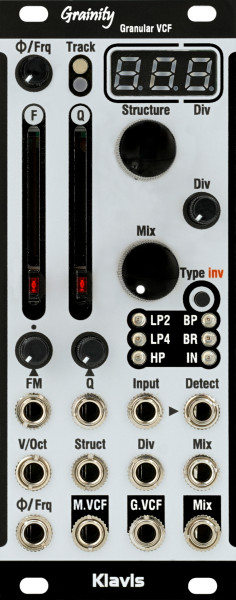

the grainity brings a unique and never-heard-before concept to the world of analog vcf. while being based on analog filtering only, the grainity expands and enriches the sound in creating subharmonics, harmonies, unison, flanging effects and formant filtering
all at once. the module presents two sections, the granular filter itself and a typical multimode filter, each with its own output. a third output offers a mix of both filter paths. numerous controls and cv allow a very wide palette of results.
features:
unique concept of granular vcf
100% analog audio path
two simultaneous filter flows, granular vcf and multimode vcf, with separate outputs
mixing of both filter's output to a dedicated out
phase inversion switching between the two filters
shared frequency and resonance controls
multimode filter with various types and poles
self-resonance capability
granular filter with unique controls:
structure selection from a predefined list
division to extend the grains length
phase setting of the cycling point
tracking and offset tuning of the cycles
detect input for cycling unrelated to audio input
7 cv inputs to control all settings
current settings maintained over power cycle
firmware update via a simple audio file
scratch-resistant printed aluminum panel
compact and skiff-friendly module
