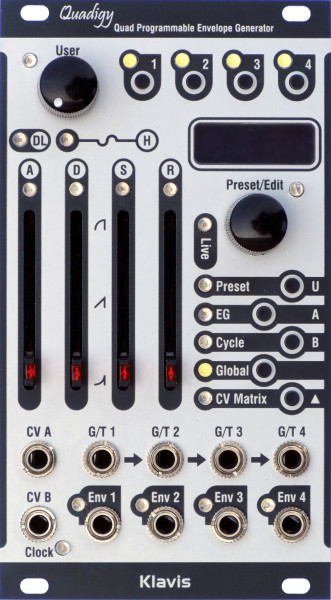

klavis quadigy: quad programmable envelope generator (silver) price : $324.00

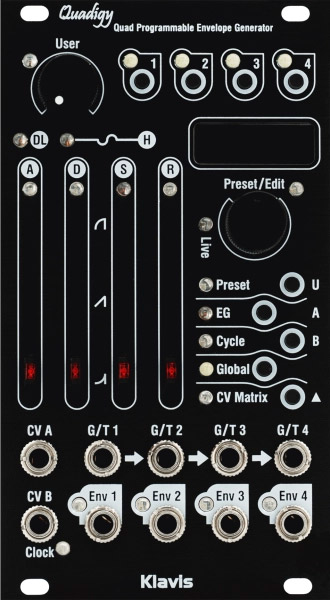

quadigy: quad programmable envelope generator (black) price : $334.00

the quadigy is a complex envelope generator focused on live play. the goal is to allow the user setting up rich, interactive and dynamically evolving envelopes without the risk of breaking up a subtle and intricate patch once on stage. this is achieved by offering two main modes, one where full control is available and a live mode where only the settings that are sensible using on stage are accessible.

features:
quad 7-stage envelopes
pre-delay
hold
attack
punch
decay
sustain
release

continuous curve shape setting
inversion
independent output level

cycle capability with auto fit-to-clock
elastic time stretching
5 internal clocks with tap tempo
external clock control
multiply/divide and offset
individual cycle ext. control

32 presets with naming
external preset control via cv/trig
simultaneous 156-point cv matrix
morphing on presets and cv matrix
multi-editing for polyphonic uses
live mode for easier/safer control
graphical display
real-time envelope stages led indication
settings restored after power cycle
easy firmware update via an audio file
skiff-friendly and compact module

specifications:
mechanical:
height: 128.40 mm, 5.06 in, 3 he
width: 71.00 mm, 2.8 in, 14 hp
depth behind panel (with supply cable inserted): 38.00 mm, 1.49 in

supply:
+12v, 24ma; -12v, 10ma; +5v, 40ma

download the users manual here.
