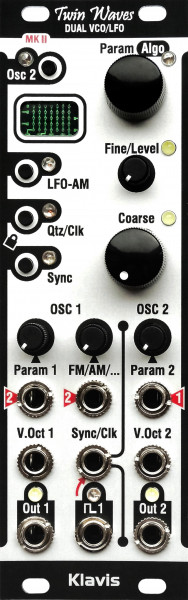

klavis twin waves mk ii: dual vco/lfo/random (silver) price : $282.00

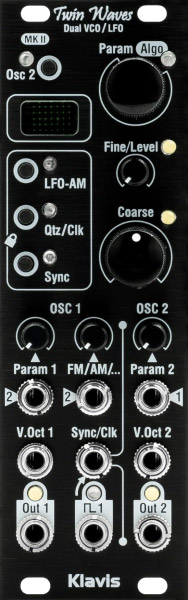

twin waves mk ii: dual vco/lfo/random (black) price : $292.00

this mkii evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections. all of the original features are present: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features. more than ever the twin waves is versatility at its best.

what is kept and what is new?
same width (8hp)
all tw v1 capabilities and features retained
three dedicated modulation gain pots
semi-modular cross-section patching
thinner design; all fits on a single pcb

whereas the original twin waves required +/-5v signals to benefit from full scale modulation, the new version requires less and has gain knobs for all 3 modulation inputs. these gain knobs are even more beneficial given that a normalling of the outputs to the other section's modulation input(s) allows creative results without requiring extra patching. this offers an easy and creative access to "complex oscillator" fun and cross modulation lfo, chaos and craziness..

using the outputs does not break their normalling; this avoids using a "multiple" when the output signal should go both inside and outside the module.

the dedicated "square1" output of the first oscillator is normalled to the global sync/clock input. this allows synchronizing the second oscillator both for audio and lfo/random purposes.

features:
two oscillators independently set as vco, lfo, or random generator

features in vco mode:
v/oct tracking over 10 octaves with octave selection
through zero and linear fm
sub-octave output
hard & soft synchronization
vca control and cv algorithms selection
quantizer with various scales
20 algorithm-based synthesis types among:
wave shaping
phase modulation
phase positioning of multiple waves
up to 5 stacked oscillators in tunable unison
self-sync with phantom oscillator
additive synthesis (7 waves)
variable bit reduction (bit-crushing)
ring modulator with its own 2nd oscillator
noise with lpf, bpf, or resonant filter

features in lfo mode:
simultaneous signal and trigger outputs
external wave synchronization
clock controlled rate with voltage controlled multiplier and divider
cv and knob control of output level
algorithm based wave engine with a selection of:
wave shaping
phase modulation
random levels and vectors (also brownian)
randomly spaced triggers and waves

display with contextual icons and instant reminder help text
leds indicating potentiometer vs. value matching, switch settings and output signals
settings restored after power cycle
firmware update by playing an audio file via the front panel
compact and skiff-friendly module

specifications:
mechanical:
height: 128.40 mm, 5.06 in, 3 he
width: 40.40 mm, 1.59 in, 8 hp
depth behind panel (with supply cable inserted): 21.00 mm, 0.83 in

supply:
+12v, 52ma; -12v, 17ma; +5v, 0ma

download the users manual here.
