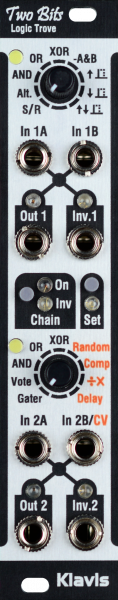

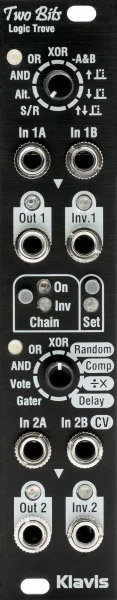

klavis two bits: dual logic processor with chaining and cv price : $156.00

two dual-input sections can be used independently, put in parallel for 4-input wide logic, or chained for more advanced processing. each section presents normal and inverted outputs. the two sections offer a set of common and specific functions for a total 15 different ones; 30 when counting the inverted resuts (e.g. or/nor). several functions offer real-time cv control for dynamic changes of the conditions. all time-related functions can be independently user adjusted and are saved automatically. leds tell permanently the actual status of all outputs.

features:
two dual-input logic processors
15 different functions (+ inverted: and > nand)
simultaneously available normal and inverted outputs
leds on all outputs
chaining optionally inverted by dedicated button with leds
chaining does not waste any input or output; an additional virtual input is created in the second section
functions with duration, voltage, percentage, and ratio are user editable.
user settings are stored automatically
random pass, voltage comparator, clock mult/div and delay line functions allow cv control
white leds next to the pots confirm the matching of knob position and function
the outputs can be ored by simple shorting in a multiple
settings restored after power cycle
firmware upgradeable by playing an audio file
low consumption, skiff-friendly & compact module
complements klavis' logica xt with a varied feature set

specifications:
mechanical:
height: 128.40 mm, 5.06 in, 3 he
width: 25.20 mm, 0.99 in, 5 hp
depth behind panel (with supply cable inserted): 21.00 mm, 0.83 in

supply:
+12v, 31ma; -12v, 1ma; +5v, 0ma

download the users manual here.
