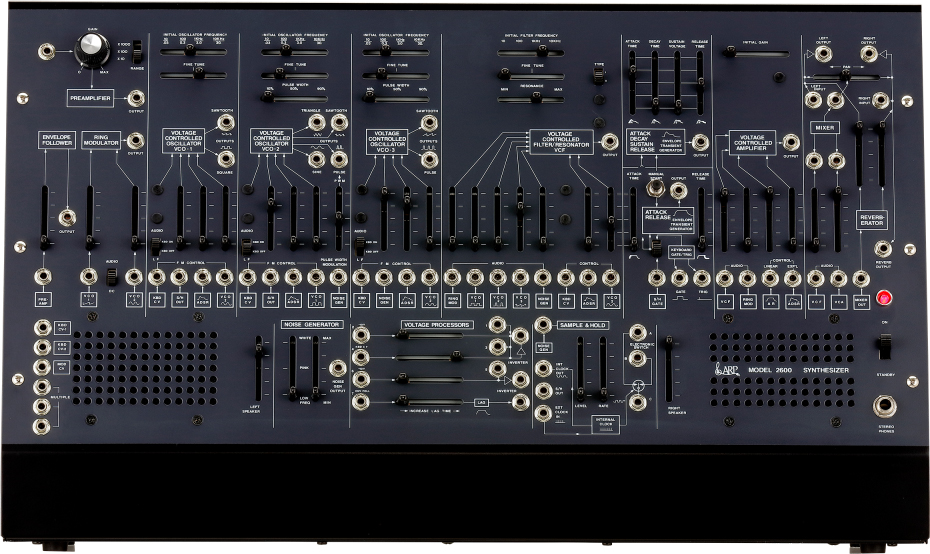

the genuine arp 2600 in a more convenient size.
the arp 2600 is arguably the most iconic and recognizable synthesizer of all time. having been used in countless records, film scores, tv shows and game soundtracks since its appearance from the 70's through to today, the arp 2600's sound remains an
essential part of the music world. the new arp 2600 m delivers the sound admired around the world, in a more compact and portable format and including added features that make it the ideal incarnation of this historic synth.
a legend, reborn
when the arp 2600 fs was announced in january 2020, it quickly became a phenomenal success with musicians all over the world recognizing the faithfulness to the original arp 2600. the arp 2600 m is around 60% the original size, making it lighter, more
portable and easier to place and use in a studio. it integrates the same analog circuitry and components as the arp 2600 fs, thus faithfully reproducing the characteristic arp sound.
proudly designed and made in japan
the arp 2600 m is built in japan with the same care and extraordinary quality standard as the arp 2600 fs, and uses the same analog components to accurately reproduce the sound and feel of the original. the spring reverb has been re-engineered and adapted
to the new size body with the same lush effect.
with the intense focus on quality and a large amount of hand assembly, the arp 2600 m is not a typical mass-produced instrument. due to this boutique nature, manufacturing quantities each month will be inline with our commitment of delivering a truly prized
investment.
a must-have in the studio
it is not by chance that the arp 2600 has been so extremely popular to this day. more than a synthesizer, the arp 2600 m is a complete sound design studio. even today, the arp 2600 stands as a bridge between the individual elements of modular synthesis and
the immediacy of a production / performance instrument.
included are an ample supply of oscillators, envelopes, a filter and amplifier - all of the building blocks of analog synthesis. but the arp 2600 m goes even further, with a spring reverb tank and a pair of built-in monitor speakers. also present is much of
the versatility of a vintage modular system, including a ring modulation, lag and voltage processors, an envelope follower, audio preamp, a clock-able switch, noise source, a sample-and-hold module, signal inverters, an auxiliary mixer, and even a set of
parallel-wired/multi jacks.
specifications:
operating temperature range: 0 - +40 ℃ (non-condensing)
maximum polyphony: 2 voices for duo phonic; normally monophonic
vcf (voltage controlled filter)
type: low-pass (type i : early 24 db/oct., type ii: late 24 db/oct.)
frequency range: approx. 10 hz - 10 khz
resonance: 1/2 - self oscillate
vca (voltage controlled amplifier)
control voltage: ar type (internally connected), adsr type (internally connected)
noise generator: noise spectrum types (white and pink)
ring modulator
type: analog multiplier
input signal (internally connected): vco-1 sawtooth wave, vco-2 sine wave
sample & hold
sampled signal: noise (internally connected)
audio output jacks
front panel (left, right output) jacks
connector: φ3.5 mm monaural phone jack
maximum output level: +9 dbu @ 10 kω load
output impedance: 1.2 kω
side panel
connector: φ6.3 mm monaural phone jack
maximum output level: +4 dbu @ 600 kω load
output impedance: 1.2 kω
headphones jack
connector: φ6.3 mm stereo phone jack
maximum output level: 50 mw + 50 mw @ 33ω load
output impedance: 20ω
external audio input (preamplifier input) jack
connector: φ3.5 mm monaural phone jack
maximum input level: +2dbu *range x10, gain knob max
input impedance: 100kω
midi connector: in
usb port: type a, type b
general
power supply: ac power supply terminal (ka320)
power consumption: 13w
dimensions:
(w x d x h): 520 x 129 x 311 mm / 20.5 x 5 x 12.2 inches
weight: 6.0 kg / 13 lbs.
