forty years later, a complete revival. the legendary analog synthesizer that transformed its age. the arp odyssey was an analog synthesizer originally produced in 1972 by the american manufacturer arp
instruments, inc. that quickly garnered a faithful following among musicians. well respected for its high value, ease to play and portability, the arp odyssey had undergone several improvements during its
history and continued to be a long-seller until manufacturing stopped in 1981 due to economic hardships and the digital surge. loved by a wide range of musicians as a historical classic, its sound can be heard
on numerous classic songs.
now in 2015, korg has brought back the arp odyssey for today. with the advisory assistance of david friend, the co-founder of arp instruments, korg has completely reproduced the original circuitry for artists
looking to recreate classic sounds and explore new ones. together the engineers at korg and arp were able to nail the sound and feel of the original. every detail has been carefully considered to stay true to
the quality of the original, down to the sophisticated semi-hard case.
the legendary arp sound is loved to this day. long stopped, the wheels of history have again begun to move.
profile of david friend:
co-founder of arp instruments, inc. together with the founder alan robert pearlman. in addition to designing the arp odyssey, he was involved with the development of numerous products, and subsequently entered
management, eventually becoming president of the company. his achievements as an entrepreneur have also been acclaimed, and in 2010 he received the "entrepreneur of the year" (emerging technology category) award
from ernst & young. currently he serves as the chairman and ceo of carbonite, inc., as well as being a lecturer at mit's sloan school of management. he is also an emeritus professor of the new england
conservatory and berklee college of music.
the arp odyssey was an analog synthesizer originally produced in 1972 by arp instruments, inc. that garnered a faithful following among musicians. well respected for its high value, ease to play and portability,
the arp odyssey is loved by a wide range of musicians as a historical classic.
the original arp odyssey was a 2vco duo-phonic instrument. its most distinctive feature was its sharp, penetrating sound and its rich range of tonal variation. with a variety of functions and modulation
possibilities provided by oscillator sync, sample & hold, pulse width modulation, high-pass filter, two types of envelope generator, and pitch bend using the ppc, it was able to create a versatile range of
sounds.
the arp odyssey reproduces the sounds of these components at the circuit level. under the supervision of david friend, parts were carefully selected and every detail was adjusted to replicate the original unit's
distinctive synthesis.
filters of all three generations are provided
broadly speaking, there were three versions of the original arp odyssey, divided by the date of production, with the major difference being the filter circuit. the arp odyssey provides all three of these
different filter circuits, and allows you to select one of them with a single switch.
type i (rev1) is a 12 db/oct circuit that produces a sharp, punchy sound. type ii (rev2) is a 24 db/oct filter with great-sounding lows. type iii (rev3) maintains excellent stability even when resonance is
raised. these distinctive filters have been reproduced just as they originally were.
portamento behaviors of both rev1 and rev2/3 are provided
on the original arp odyssey, the behavior of portamento when using the transpose function differed between rev1 and rev2/3. the arp odyssey reproduces both of these behaviors and lets you select the desired one
with a switch.

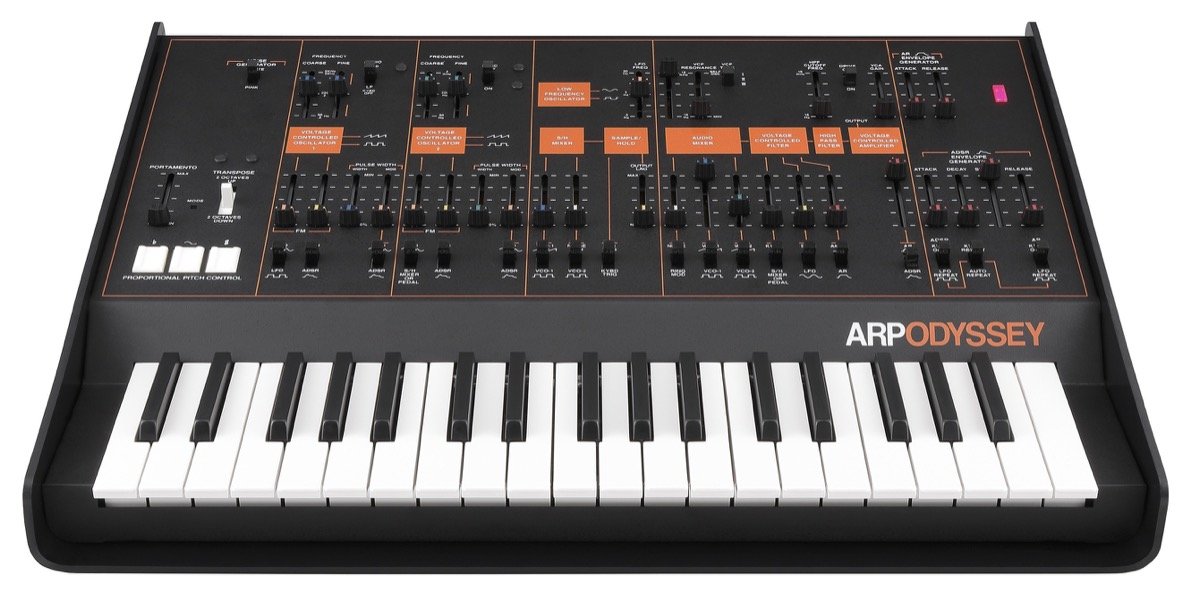

an evolved arp odyssey that preserves the basic design of the original
compact body, highly operable sliders, and a slim keyboard that's easy to play the arp odyssey has been downsized to 86% of the original arp odyssey. carefully selected parts are used in the familiar slider
section, providing an operating feel that's even smoother than the original. the keyboard uses a 37-note slim keyboard that features lighter weight and excellent playability. while making the instrument more
compact and easier to use, we have also paid attention to ensuring that the mini-keyboard is uncompromisingly "playable." although the keyboard has 37 keys, the transpose function lets it cover a broad range of
seven octaves.
the new drive switch
in order to deliver a more powerful analog sound, a drive switch is provided as a new function. turning this switch on makes the vca distort, generating a rough and raw sound.

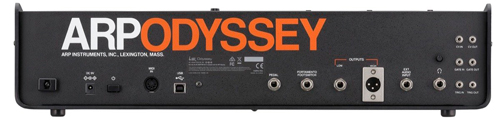

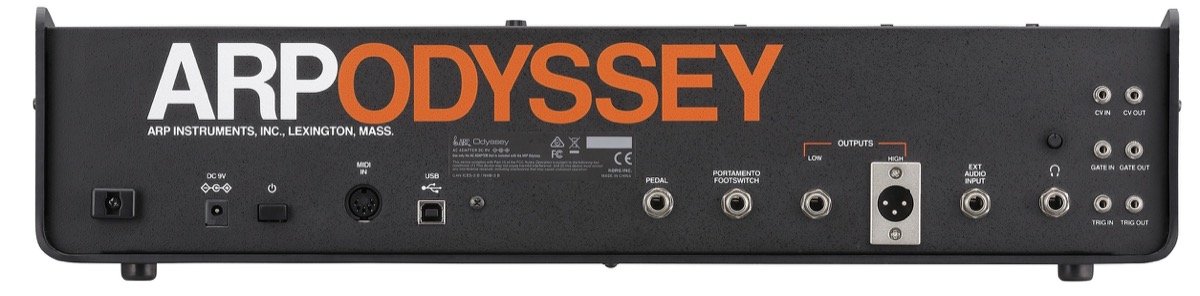

added connectors such as midi and headphone output
the connectors provided on the original arp odyssey differed by production date, but based on rev3 of the original, the arp odyssey brings the specifications up to a modern standard. in addition to a midi in
connector and usb-midi port, we've added a headphone jack with adjustable volume (*). the xlr output jacks which had been unbalanced have been changed to noise-resistant balanced outputs.
patch cables included
quarter-inch and mini-size patch cables are included. if you connect a patch cable from the newly added headphone jack to the external audio input jack, you can produce a powerful sound by applying
self-feedback. if you connect the gate out jack to the trig in jack, the eg won't be retriggered, allowing you to play legato.
dedicated semi-hard case included
a dedicated semi-hard case that's ideal for storage and transportation is included. it sports the classical arp logo, and has a sophisticated finish in a black tone. the corrugated shell structure ensures
excellent impact resistance, and internal cushioning and pocket for small items is also provided.
specifications:
keyboard
37-note (slimkey, no velocity sensitivity, no aftertouch)
maximum polyphony
2 voices for duophonic; normally monophonic
controllers
transpose positions
2 octaves down, normal, 2 octave up
proportional pitch control
b (pitch down) pad: about -2 / 3 octave
- (modulation) pad
# (pitch-up) pad: about +2 / 3 octave
noise generator
noise spectrum types (white and pink)
portamento
maximum speed: about 0.01 msec./oct
minimum speed: about 1.5 sec./oct
