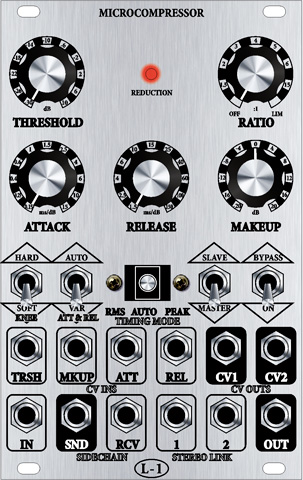

l-1 microcompressor
price : $330.00
|
|
this is compact but hi-quality feedforward vca compressor.
features:
adjustable by potentiometers threshold, ratio, attack, release, makeup gain.
reduction led which lights when signal level exceeds threshold.
threshold, makeup, attack and release can be controlled by cv. -+5v covers all pots range.
hard/soft knee switch.
two timing modes are available -- auto and manual. in auto mode attack and release rates are linked, and depend on the non-linear capacitor circuit. in manual mode, variable, independent adjustment of the
attack and release dynamics are possible.
rms, peak or automatic timing detector options.
two cv outs. cv1 after rms-level sensor and treshold control works something like envelope follower. cv2 after all controls beforevca, using this out any vca can be patched as compressor or modulating a
filter gives interesting effect.
sidechain send and receive to external sidechain processing.
two microcompressors can be linked in stereo pair by stereo 1 and stereo 2 jacks. master/slave switch off controls on slave unit. stereo 1 to link the two rms detectors. such coupling results in true
power summing and a more euphonic behavior. stereo 2 to send cv from master unit to slaves vca.
audio sample:
tube vca works as compressor modulated from cv2 out of microcompressor. filter - mutant vactrol vcf. no effects.
|
