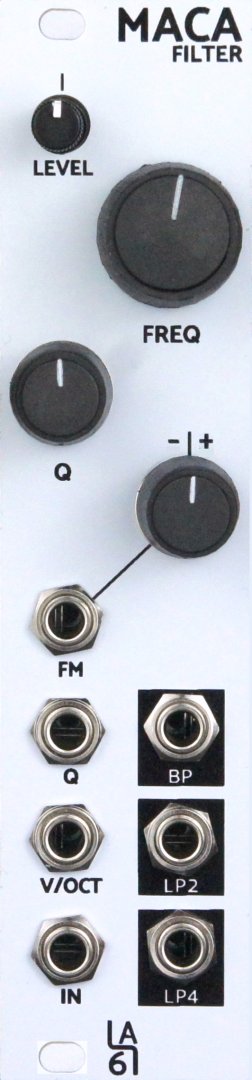

la 67 maca filter
price : $169.00
|
|
a 4-pole multimode filter based on the ssi2140 integrated circuit. essentially an updated version of the classic ssm2040, the new ssi2140 adds better temperature compensation and a vca that helps eliminate low
frequency damping at high resonance settings. besides the obligatory 4-pole low pass, maca adds both 2-pole low pass and 4-pole band pass outputs. there is also a input level control that allows you to easily
overdrive the filter core.
features:
4-pole lp, 2-pole lp, & 4-pole bp outputs
input level control
16hz-16khz range
"q" cv input
inverting attenuator on "fm" input
"v/oct" cv input
sine wave oscillator at high "q" settings
specifications:
6hp
20mm depth
current draw: 25ma/25ma, +12v/-12v
reverse power polarity protection
|
