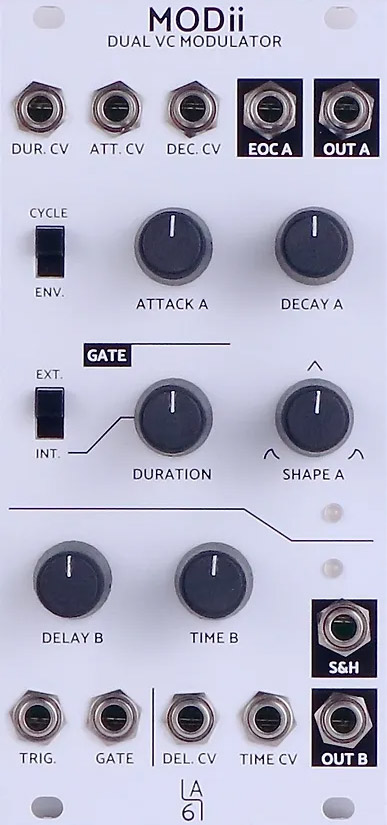

la 67 modii: dual vc modulator
price : $189.00
|
|
modii combines a function generator and a vc decay envelope. the two modulators are synchronised via shared trigger/gate inputs. vc gate duration on the function generator allows remote-controlled note length. the decay envelope includes a vc trigger delay, and
an s&h on the time modulation input.
modii includes a combination of circuit ideas previously found in serge, buchla, and hordijk modules.
features:
vc trigger delay for the decay envelope allows you to break the synchronisation.
an internal s&h on the decay time input stabilises the envelope modulation.
s&h signal has its own output.
vc gate duration on the function generator enables varied notes lengths.
specifications:
12hp
25mm depth
Current draw: 55mA/45mA +12v/-12v
reverse power polarity protection
download the user guide here.
|
