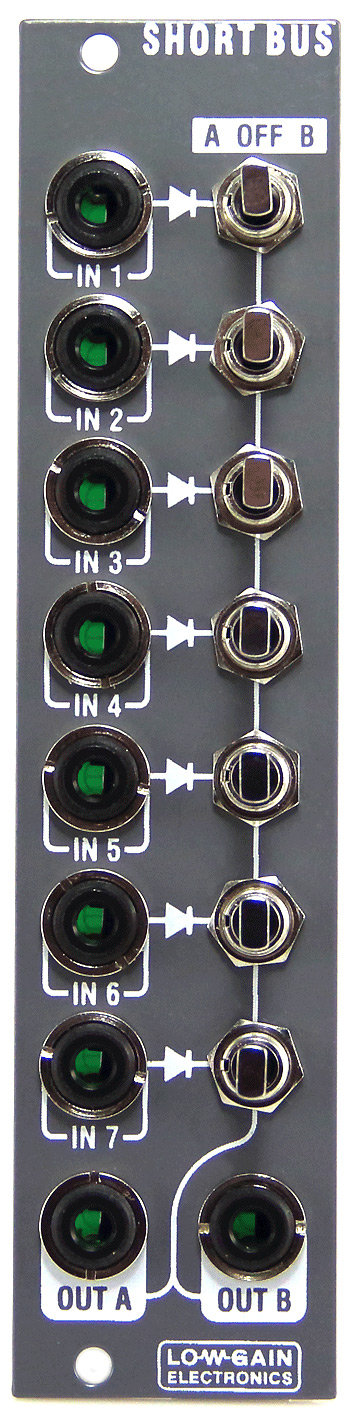

low-gain electronics short bus v2 price : $99.00

the short bus is a seven input or combiner. aside from its new facelift (.060" powder coated steel panel) it has newly upgraded toggle switches which allow you to easily select one of three options, two dedicated bus outputs (labeled a and b) or you can select the "off" position. the short bus allows for easy mixing of gate, trigger, and clock signals. you can "mix" cv with the short bus, however all negative voltages will be ignored. high voltage at the inputs takes priority and voltages are not "summed". the or combiner diodes have been upgraded to allow for lower voltage drops. forward voltage drop average is now around .18v instead of .7v.

specifications:
6hp, 0ma (passive)
