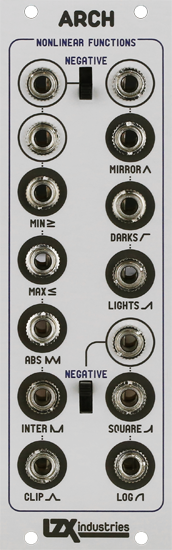

lzx industries arch price : $179.00

2-input, 5-output wideband analog logic.
binary logic can only see two colors: black and white. analog logic processes the continuous grayscale range of your analog signal path, enabling organic combinations of images in novel ways.

1-input, 3-output full wave rectifier and frequency doubler.
we love this circuit - you can find it in the signal paths of staircase, shapechanger and navigator. with an input triangle wave, you get a triangle wave at double the frequency at your output.

1-input, 2-output gamma processor.
an infinitely usable function, gamma processing adjusts the brightness of mid-gray level while keeping black and white points consistent. the square function darkens grays, and the log function brightens them.

specifications:
width: 8hp
mounting depth: 32mm
±12v power consumption: 65ma
