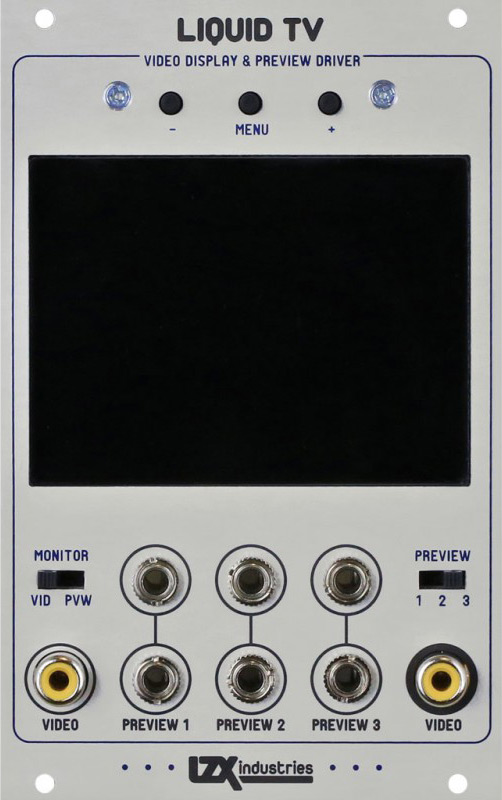

lzx industries liquid tv price : $299.00

liquid tv is a compact color video monitor and preview driver for modular video synthesizers. in addition to allowing you to watch any ntsc/pal video source inside your eurorack, you can preview any signals in your patch before the primary video output module. monitoring key elements of an intricate video synth composition enables a new level of control in your patches.

features:
ull color, 3.5 inch lcd video display.
displays any ntsc/pal video signals or the output of the internal preview driver.
internal preview driver turns any voltage in your modular synth into a valid video signal for display or output, even without any other video synthesizer modules.
three separate preview channel inputs with pass through jacks.
the lcd display may be powered from an external 12v source to ease the drain on your eurorack power supply.

specifications:
width: 16 hp
mounting depth: 32mm
+12v power consumption: 210ma
-12v power consumption: 30ma

download the reference card here.
