lzx industries passage price : $219.00

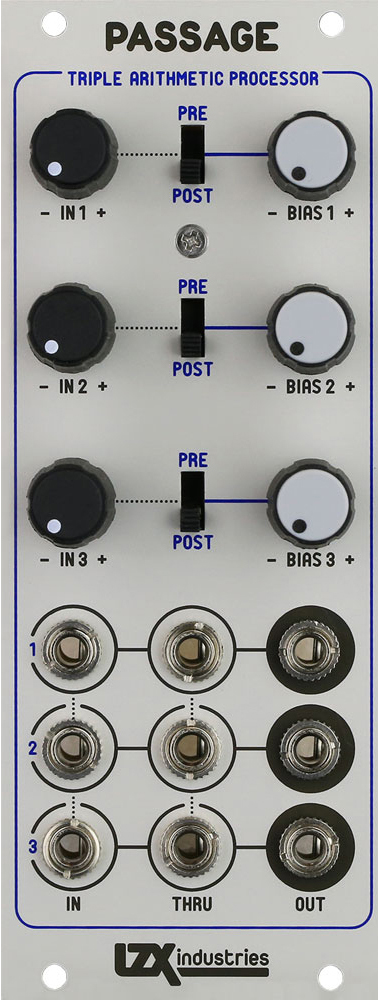

traverse new sights in signal mixing and processing! passage is a triple channel wideband signal mixer and voltage processor. the signal path is suitable for mixing any type of signal, including video, audio and low frequency sources. this utility module is an ideal expander to visual cortex, and multiple units are a staple in any large video synthesis system.

bias controls can be applied before or after attenuator/inversion controls, allowing bipolar conversion of a modulating signal.

2 inputs, 1 attenuation/inversion control and 1 ±1.25v bias control per channel.

specifications:
weight: 8 oz
dimensions: 6 x 3 x 2 in
mounting depth: 1.25 inches
±12v power consumption: 40ma
width: 10hp
