lzx industries
pendulum

price : $219.00

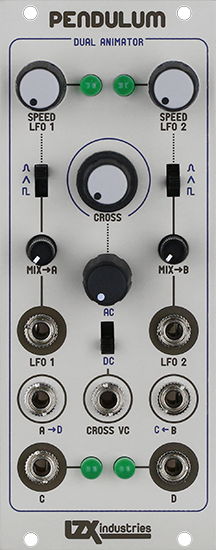

Pendulum

2 low frequency oscillators with sine, triangle and square out.
analog circuitry produces continuous waveforms with a frequency range of 45 seconds per cycle up to frame rate. simple and classic.

2-input, 2-output voltage-controlled fading and routing.
you can never have enough crossfaders in a video synthesizer. pendulum's fader has two channels which cross over each other when voltage control is applied. this enables flexible patching as a signal router/panner, dual fader, vca, or inverted vca.

perfect patch-through workflow.
pendulum's lfos can be mixed with the fader inputs using their dedicated mix controls. this feature allows two video rate signals to be patched through the crossfader with dedicated modulation ready to go!

specifications:
width: 10hp
mounting depth: 32mm
+12v power consumption: 80ma
-12v power consumption: 65ma
