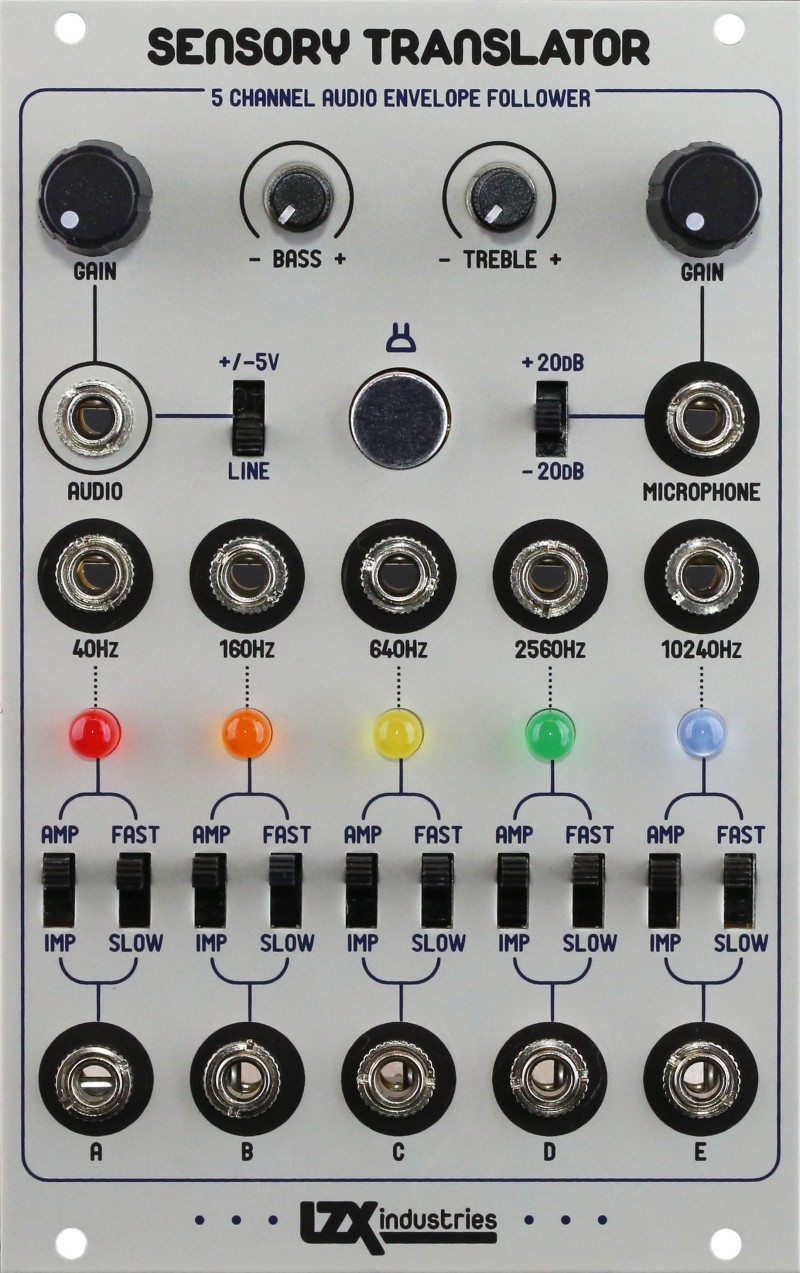

lzx industries sensory translator price : $249.00

dissect sonic energy into a rainbow of visual modulation sources! sensory translator is an audio-to-video interface module designed to generate a variety of visually rich animation control signals. the audio input and internal microphone are mixed together and processed by bass and treble tone controls before being fed into a bank of five 4-pole band pass filters. these bandpass filter outputs are then processed by individual envelope followers. each envelope follower has 3 decay speeds, as well as an impulse mode for beat-to-trigger extraction. all signal paths and control ranges are compatible with standard eurorack audio module signal ranges, so this module is equally at home in an audio synthesis system.

features:
omnidirectional electret microphone mounted on the frontpanel, 3 preamp gain settings and dedicated output.
external audio input selectable between line and modular level voltages.
2-input mixer including equalizer with bass/treble controls.
five 4-pole precision bandpass filters, each with 2-octave bandwidth.
five envelope followers with three decay speed settings, dedicated led indicators, and selectable impulse mode for beat-to-trigger detection.

specifications:
weight: 10 oz
dimensions: 5.5 x 4 x 2 in
width: 16hp
mounting depth: 1.25 inches
+12v power consumption: 80 ma
-12v power consumption: 70 ma
