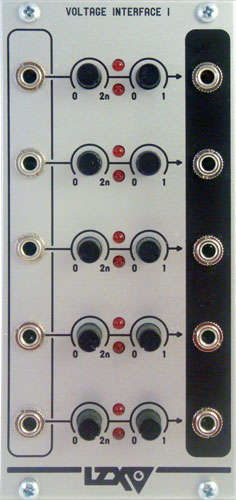

lzx industries voltage interface i price : $199.00

the voltage interface i is a 5-channel precision voltage conditioner which can transform external signals, from 10v control voltages to line level audio, into the 1v signal ranges expected by lzx visionary modules. an external signal is inserted into an input on the left side of the module. gain and bias controls are adjusted until neither of the two clipping indicator leds are lighting up. internal clipping circuitry for each channel ensures that output voltages above 1v and below 0v are completely clipped off. the conditioned signal is accessible at the output jack on the right side of the module.

specifications:
width: 12hp
maximum current draw: 85ma
