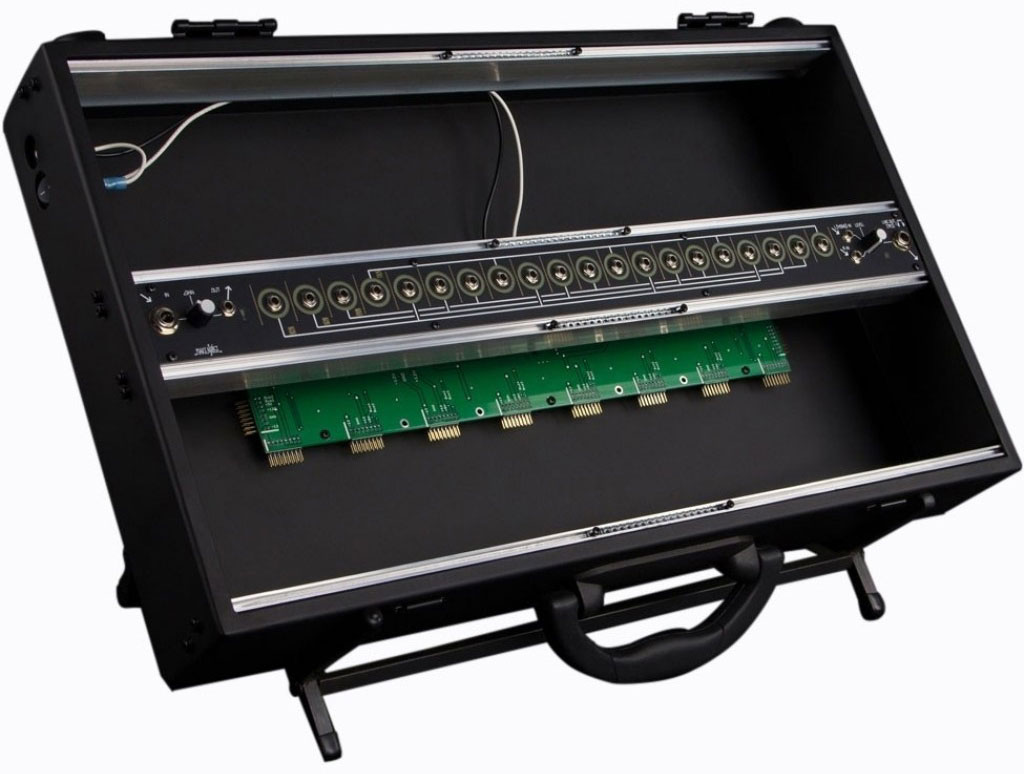

make noise 7u metal cv bus case price : $660.00

our 208hp 7u metal cv bus case ships ready to use. just add modules, patch cables and inspiration. the powder coated metal construction is 2 lbs. lighter than our wood shared system case without compromising mechanical durability. the sleek matte black finish was selected to match our line of black & gold modules, and it looks great with just about any module installed. this finish will show the story of your modular synth's travels over the years.

the cv bus was originally designed for alessandro cortini's personal make noise system. it provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. these 4 control signals are color coded and distributed across the center of the system allowing for quick, clean and intuitive patching. the distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. the color coding and visual indication makes navigating complex patches easier and more intuitive. typically, the cv bus would be used to share the most important control signals in a patch such as your master clock.

the cv bus also has the tools needed for integrating the make noise system with the outside world. a ¼" mono input with plenty of gain allows for bringing external signals into the system. the optimal 10vpp signal level is visually indicated. a high quality stereo line driver converts powerful modular synthesizer signal levels to the commonly used line level. there is mini-jack inputs for left and right, a single master volume control, and a trs stereo ¼" output jack. this output is capable of driving long cable out to a pa system or a set of headphones. it has ac coupling and a built-in limiting circuit (with visual indication) that prevents damage to ears and pa system when the patching gets experimental.

specifications:
size: 7u
total hp: 208 @ 3u, 104 @ 1u
outer dimensions: 22.25" x 14" x 7.25" w/ lid
max module depth: 2.5"
weight: 12.75 lbs. (w/ powered bus board, cv bus installed)
power: 1.4 amps @ 12vdc, 1a @ -12vdc, 1a @ +5vdc (w/ powered bus board, cv bus installed)
connectors: 18
includes: cv bus, powerd bus board, 80 sliding m2.5 nuts w/ black screws, ac adapter
