make noise
bruxa

price : $399.00

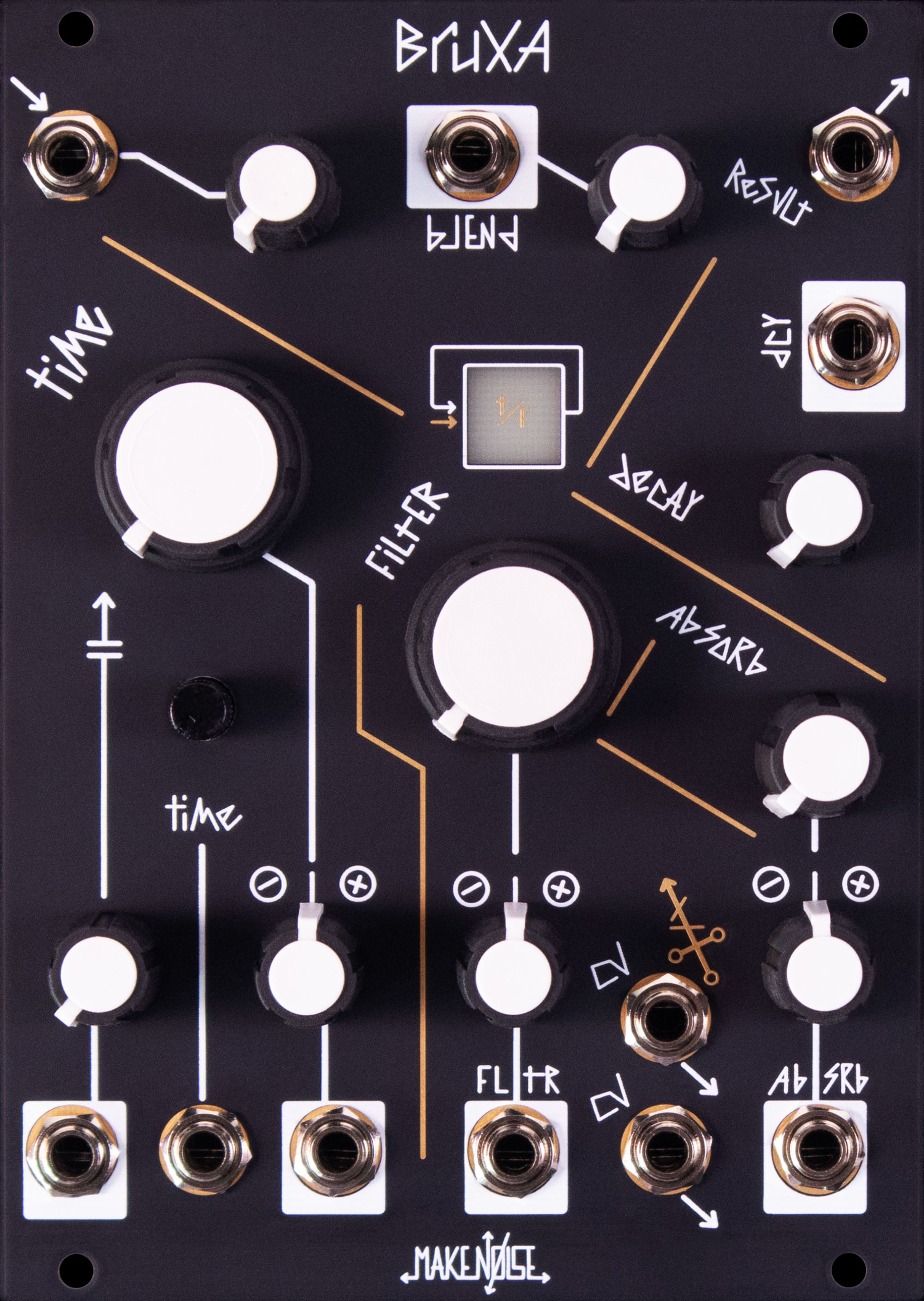

Bruxa

the bruxa is due to be shipped in october of 2024.

the bruxa music synthesizer module is an audio alchemical experiment. spill your sound into time, and let it decay through the filters to hear the results.

bruxa is a collaboration between make noise and alessandro cortini. inspired by cortini's music and sonic experimentations, bruxa embodies the seen and unseen, the sign and magic, the alchemy of sound. it is a new evolution of tony and alessandro's original prototype circuits which eventually became the strega's time/filter experiment. it is a multi-tap delay line with over a dozen unique feedback paths and multiple filters within those feedback paths aligned to allow for accumulation of noise, saturation and signal degradation.

while strega is a complete synthesizer in a tabletop form factor, bruxa is a eurorack module designed to be used as one part of a eurorack modular synthesizer. you will discover a number of differences in layout, signals, and sound. living inside the eurorack modular system, bruxa encourages you to patch your own sound and modulation sources, yielding results surprisingly distinct from strega.

features:
echoverb signal processor which shares origins with strega
well tuned to work nicely in a eurorack modular system
all analog dry signal path blended with digital/ analog hybrid signal processor
analog cv inputs with wide range capable of audio rate modulation
time control with massive, smoothly variable range
linear fm input with attenuator allows for fluttering of time
absorb and filter controls dramatically shape the echo tone and reflections
new unique cv outputs for use in self-patching or mutual patching with other modules
pairs well with sto, maths, prss pnt, moddemix and more!

specifications:
width: 18hp
max depth (incl. power cable): 48mm
power: 140ma @+12v, 90ma @-12v
