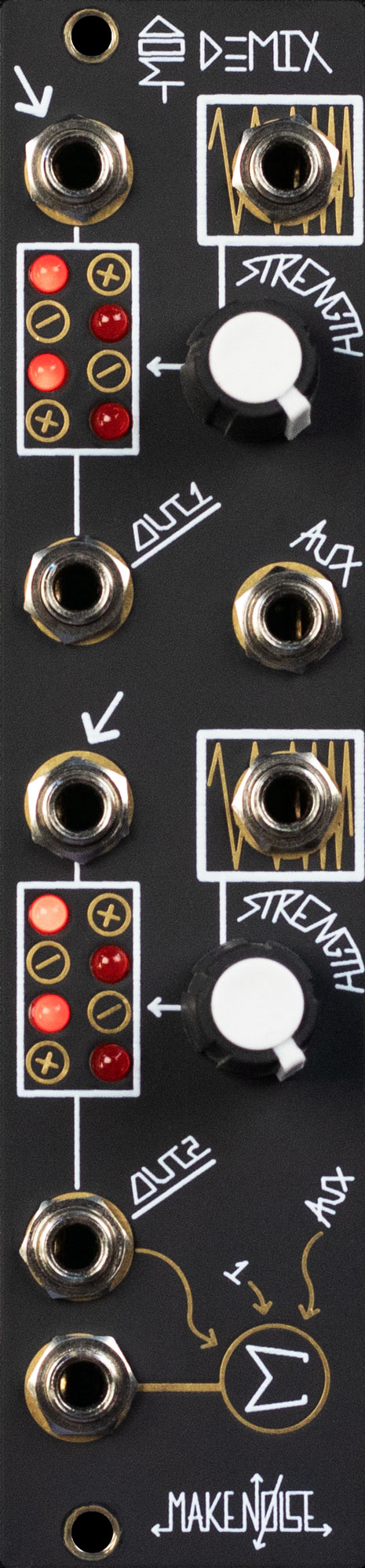

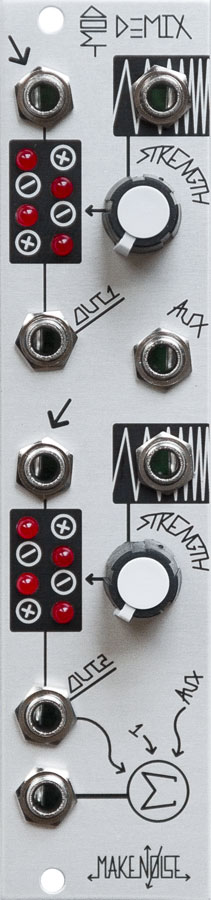

the moddemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for ring modulation, vca, mixer, signal multiplication, voltage controlled polarization,
attenuation and more.
features:
unique balanced modulator circuit turns off around zero volts at the carrier/ control input, making the circuit behave well as a vca
strength is a combo knob, with nothing patched to strength cv in, it works as a standard panel control, setting level. with signal patched to strength cv in, it works as an attenuator, setting the strength of the modulation
both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
auxiliary in allows for the stacking of multiple moddemix and/ or optomix to create larger mixes
part of a decentralized mix console integrated throughout the system along with optomix, x-pan, dynamix, and rxmx
able to introduce warm distortions to audio signals, sounds like no other vca or ring mod
max blinkenlights, 8 leds packed into a small 6hp module
pairs well with maths and optomix
specifications:
width: 6hp
max depth (incl. power cable): 32mm
power: 30ma@ +12v, 30ma @ -12v
