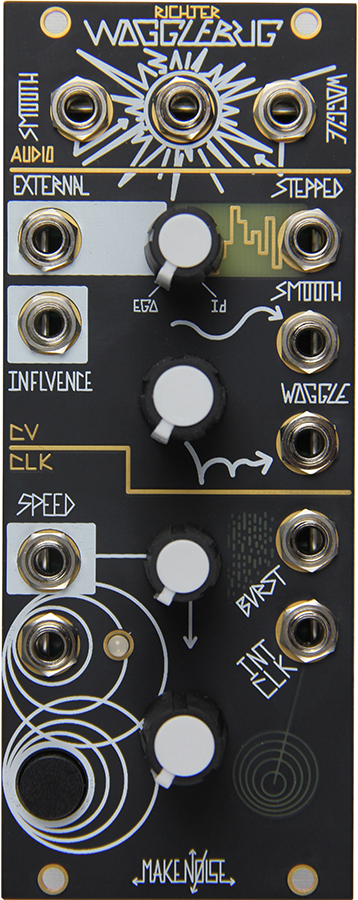

make noise wogglebug
price : $249.00
|
|
the "wogglebug" is a random voltage generator, originally designed by grant richter of wiard synthesizers. it is a continuation of the "smooth" and "stepped" fluctuating random voltage sources pioneered by
don buchla within the model 266 "source of uncertainty," expanding it to include the other-worldly woggle cvs (stepped voltages with decaying sinusoids edges). the wogglebug is a very musical random voltage
generator where it is possible to synchronize all random signal to a master clock. guaranteed to unleash your synthesizer's id monster!
features:
complete complex random voltage system, no external modules necessary
two vcos, phase lock loop, lag processor, clock, burst generator and sample & hold
generates 7 random signals simultaneously: smooth vco, woggle vco, ring mod, stepped, smooth, woggle, burst
generates ultra stable, voltage controlled master clock
external inputs for s&h (heart in) and ring-mod (influence)
disturb button adds performance element
wonderful for modulating the phonogene and dpo
this module has a maximum current draw of 50ma. it requires 10 hp worth of space to fit in a eurorack frame.
please click here to view the users manual.
|
