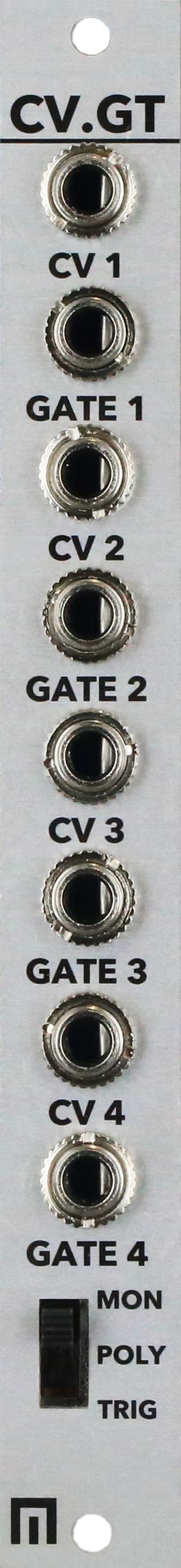

malekko heavy industry cv/gate expander module
price : $125.00
|
|
cv/gate is an expander module for malekko sync (connects via 6-pin cable included). malekko sync sends incoming midi information or trigger information to cv/gate expander outputs in 3 selectable modes
(mono, poly and drum trigger modes).
features:
4 sets of cv/gate connections
3 way mode switch
modes : mono (midi channels 1-4 sent separately out cv/gate jacks 1-4), poly (4 notes sent over channel 1 to the 4 cv/gate jacks), drum trigger (notes c1-g1 send gates out of the 8 jacks).
specifications:
3hp
+12v/-12v
download the users manual here.
|
