malekko heavy industry xmix
price : $150.00
|
|
the malekko wiard series of modules offer the same great sound, ergonomics, musicality, and quality that made the wiard 300 series legendary, at a fraction of the cost and size in eurorack modular
format.

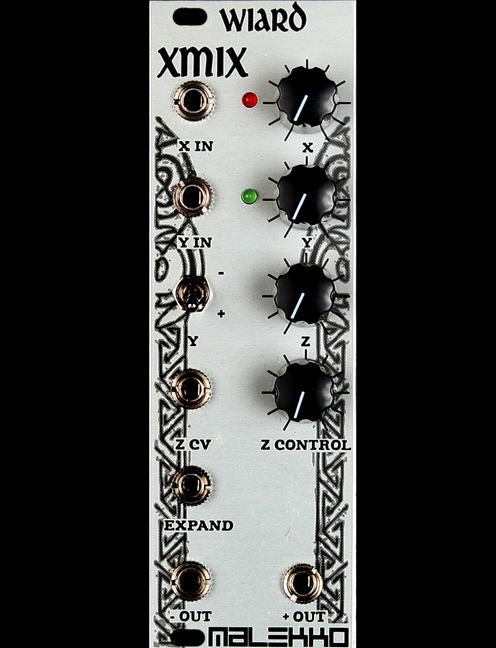

the xmix is a versatile mixing/crossfading utility module with wiard flair. there are level controls for the two inputs (x and y). the y input can be inverted via a switch. z controls the balance of x vs. y.
z has a cv input, along with an attenuator for cv amount. positive and negative outputs are provided, as well as an expand input which provides a unity input to chain the output of other modules (such as
another xmix).
some uses for the xmix:
a 2 > 1 mixer
cv crossfading
a signal inverter
audio rate amplitude/crossfading modulation
with a single input, you can use the xmix as a linear vca
input different waveforms to create new wave shapes
the x input normals into the y input when nothing is plugged into y. invert the y input with the switch, and crossfade the x signal vs the inverted version of itself
the xmix is 8hp wide, 25mm deep, and consumes approximately 45ma power.
|
