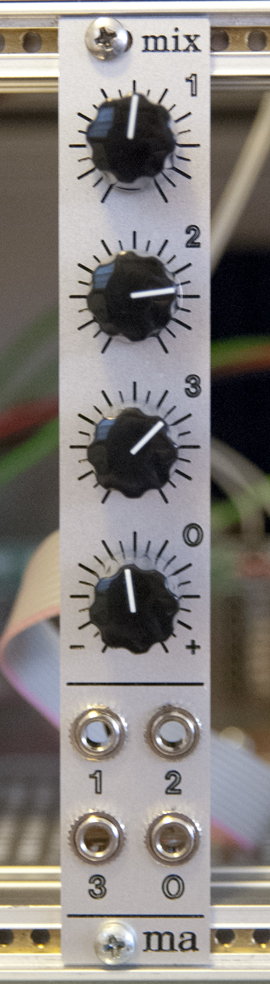

manhattan analog mix price : $99.00

the mix is designed primarily for clean, high-quality audio mixing. it is fully dc-coupled so that it retains utility as a cv mixer when necessary. i also put the jacks at the bottom so that it retains tweakability even when fully-patched.

under the hood it's a unity-gain op amp mixer, with three unipolar inputs and an output which can be switched between uni- and bi-polar operation using a jumper on the board. the inputs use audio-taper pots while the output is linear to facilitate both modes of operation. care has been taken in the selection of the op amps used to ensure low noise, no signal bleed, and as little added 'color' as possible.

specifications:
width: 4hp
depth: 33mm
