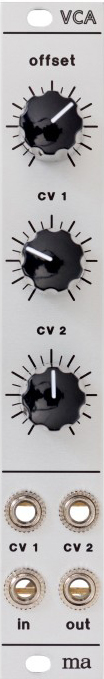

manhattan analog vca price : $99.00

the vca is another big module in a small package- a single-channel audio vca module based on the famous that2180 chip. it's ultra-clean and sounds fantastic, a perfect sonic companion to the mix and an ideal final output module.

the vca has a manual gain control (offset) and two independent cv inputs, both with an exponential (audio) response curve. they are configured to take 0-5v cv signals which will open the vca fully to unity gain. cv inputs above +5v are diode-limited, a feature which can be exploited to change the effective curve of an envelope signal similar to a "hold" stage in an ahdsr envelope.

specifications:
width: 4hp
depth: 39mm
power consumption: 10ma @ +12v, 15ma @ -12v (untested)
