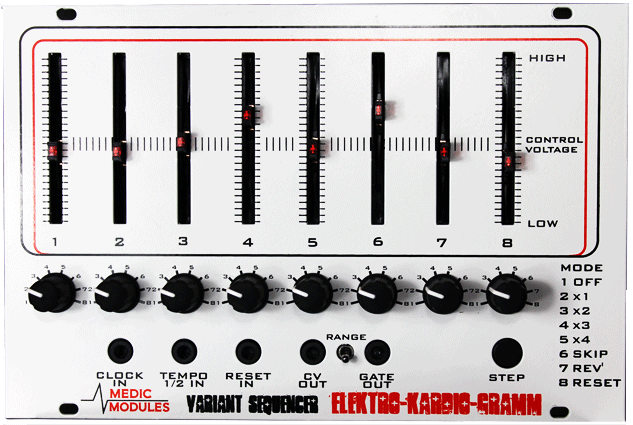

medic modules elektro kardio gramm eurorack; plain panel price : $350.00

the ekg (elektro kardio gramm) is a versatile 8-step analogue sequencer designed to fit the euro rack convention. each step has a unique function control and can be turned off, skipped, repeated or set as a reset point.

modes:
off (rest), x1, x2, x3, x4, skip, reverse and rest.

function control details:
mode 1: this is essentially a rest. no gate sent out. off.
mode 2: the step is played once, with one gate being x1 sent out.
mode 3: the step is played twice, with two gates being x2 sent out.
mode 4: the step is played thrice, with three gates being x3 sent out.
mode 5: the step is played four times, with four gates x4 being sent out.
mode 6: the step is entirely missed and the sequencer skip instead jumps to the next step.
mode 7: the sequencer plays backwards all the rev(erse) way to step one.
mode 8: sequencer resets to step one. this step is reset not 'played'. use this to change sequence length.

all parameters are set with red illuminated sliders.

connections:
clock in: this is the clock input. use a 5v clock signal, or a signal from an lfo
tempo 1/2 in: when this socket sees 5v, the sequencer will run at half speed.
reset in: when this socket sees a 5v signal, the sequencer will reset to step 1.
cv out & range: connect the cv out to your modular synth's vco to control pitch, or to cut-off on your filter
gate out: connect this to the eg trigger input on your synth. output is 5v.

specifications:
width: 38hp
depth: 25mm
voltage: -/+12v
power consumption: +12v, 15ma / -12v, 28ma
doepfer style power cable included.
screws not included.
weight 0.285kg
