mfb dual lfo
price : $199.00
|
|

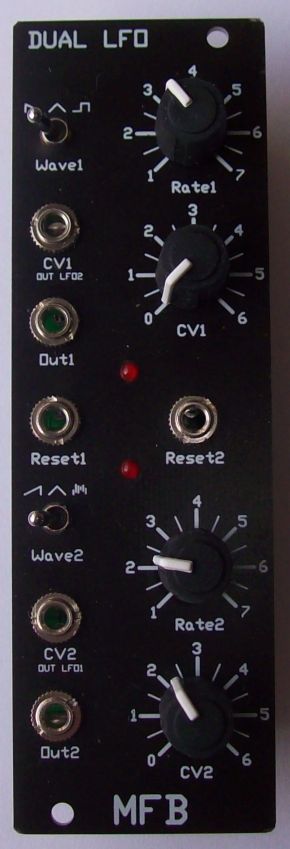

the dual lfo module houses two individual low frequency oscillators (lfos) used mainly for modulation purposes. each lfo section offers three selectable waveforms, cv-input with attenuator and a rate ranging
from 10 seconds to approximately 100 hz. by applying positive or negative voltage, this range can be widened with a factor up to 30, resulting in extreme slow or fast modulation rates.
both lfos offer individual inputs to reset the waveform, making it possible to synchronize to a sequencer with appropriate rate settings and separate reset-impulses.
lfo 1 offers triangle, saw tooth down and square waveforms, lfo 2 offers triangle, saw tooth up and sample & hold. output voltages are +/- 5 volts at maximum.
when not patched, the two cv-inputs are internally cross-wired, meaning that lfo 1 controls the speed of lfo 2 and vice versa with both attenuators being active to set modulation intensity.
the module has a width of 40 mm (8 te).
the user manual is available as a word document here.
|
