mfb midi-cv/gate module with power switch and psu
price : $120.00
midi-cv/gate module with power switch, psu & rack case
price : $230.00
|
|

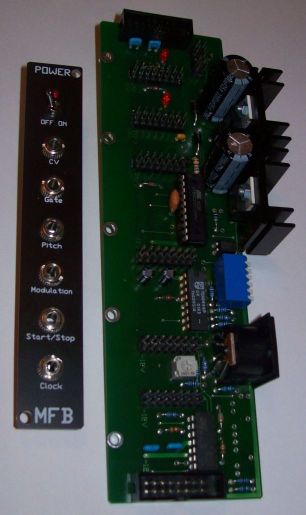

this module combines a ±500 ma power supply with a midi/cv-interface complete with connectors for up to eight modules. the ideal solution for do-it-yourself modular-frames.
the circuit board is powered by an external switching power supply to keep high voltages away from the circuit board.
power-switch on the module's front panel - no more reaching to the frame's back.
the midi/cv-interface offers key-cv and gate outputs. separate outputs are available for pitch-wheel, modulation-wheel. in addition, the module outputs midi-clock and start/stop signals on individual trigger
outputs. the midi-channel is adjusted by a set of dip-switches.
the circuit board offers eight module connections, each with ±12 volt, cv and gate.
the module has a width of 20 mm (4 te).
|
