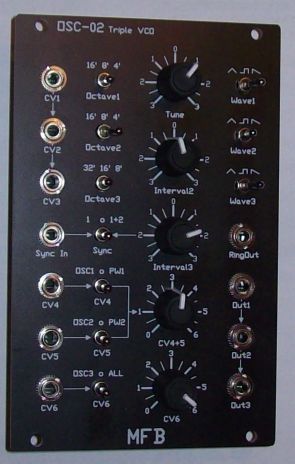

mfb osc-02
price : $299.00
|
|
osc-02 may look like osc-01 but is a very different beast inside. unlike its hybrid brother osc-01, the osc-02 uses fully analog technique taken from mfb synth ii model. three oscillators with all benefits and
the typical character of analog construction in a single compact module.
osc-02 offers a variety of notable functions: beside a common cv-control voltage for all vcos, all oscillators can be individually controlled by cv-sources, e.g. by different tracks of a cv-sequencer like
doepfers maq-16/3 or the as oberkorn. vco 1 can be synchronized to vco 3, individually or paired with vco 2. the same goes for external hard-sync. the additional cv-inputs allow for common and individual
modulations.
three outputs allow for summed and individual audio outputs. a separate outputs carries a digital ring-modulated signal of osc 1 and 2 (configurable to osc 1-3 by jumper).
the module has a width of 80 mm (16 te).
the user manual is available as a word document here.
|
