mfb
osc-03 triple vco

price : $325.00

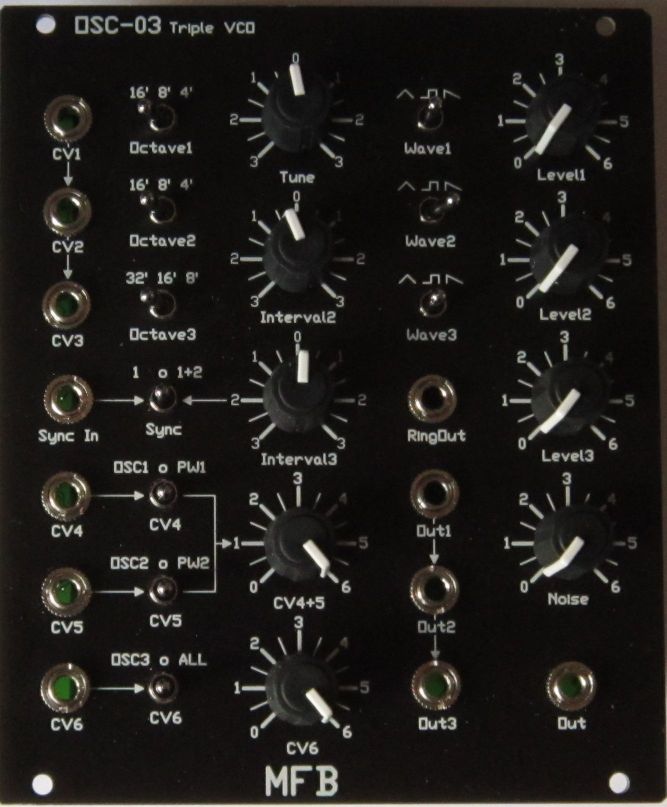

OSC-03 Triple VCO

osc-03 may look like osc-01 but is a very different beast inside. unlike its hybrid brother osc-01, the osc-03 uses fully analog technique taken from mfb synth ii model. three oscillators with all benefits and the typical character of analog construction in a single compact module.

osc-03 offers a variety of notable functions: beside a common cv-control voltage for all vcos, all oscillators can be individually controlled by cv-sources, e.g. by different tracks of a cv-sequencer like doepfers maq-16/3 or the as oberkorn. vco 1 can be synchronized to vco 3, individually or paired with vco 2. the same goes for external hard-sync. the additional cv-inputs allow for common and individual modulations.

three outputs allow for summed and individual audio outputs. a separate outputs carries a digital ring-modulated signal of osc 1 and 2 (configurable to osc 1-3 by jumper).

the differen between osc-02 and 03 is, that the osc-03 has a digital noisegenerator and an audiomixer.

the module has a width of 80 mm (20 te).
