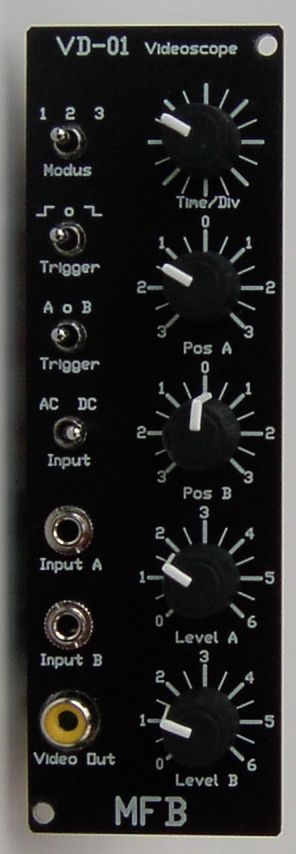

mfb vd-01 price : $235.00

display your audio waveforms on a video-monitor or a standard television. eye candy for your modular synth! connect two audio-signals at the same time. vertical positioning control of the displayed waveform with separate pos control knobs. the first trigger switch selects between a or b inputs while the second trigger switch selects between the positive or negative phase of the input signal.

time/div controls the sample frequency with a range from 1 ¥sec to 100 ms. finally, modus allows the selection of three different display modes. the video-signal is output via a standard rca jack and is therefore compatible with almost any monitor or tv-screen.
