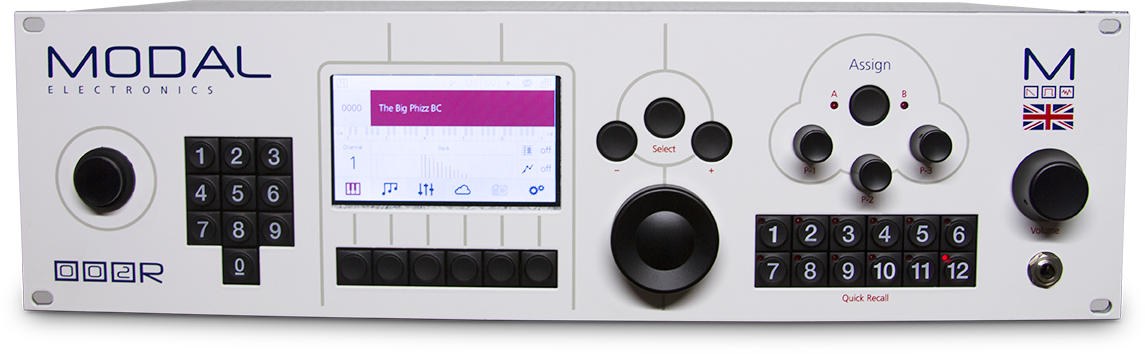

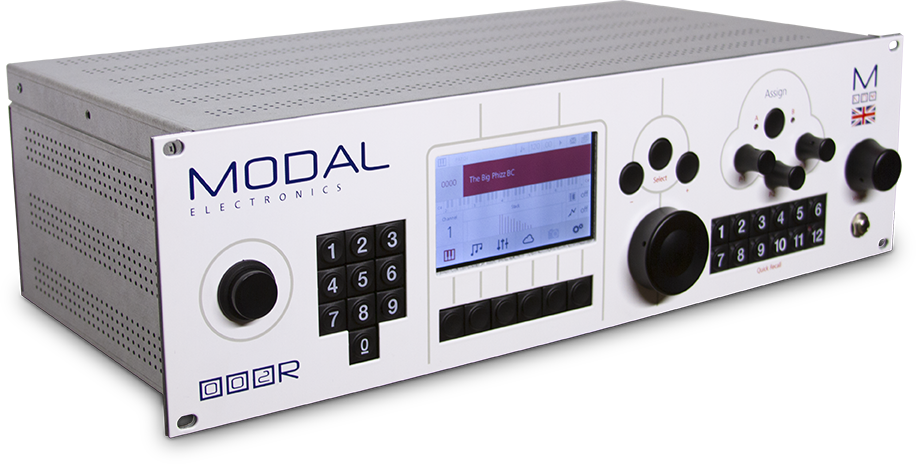

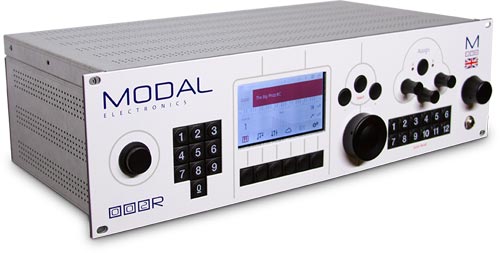

modal electronics 002r: 12 voice price : $2,795.00

002r provides either eight or twelve discrete voices of polyphony with full multi-timbrality if desired

two oscillators per voice with two sub oscillators, which can be switched from being either traditional square wave to having the same waveform as the main oscillator - in effect making four oscillators per voice

analogue / digital hybrid architecture uses ncos for very high resolution, and very stable oscillators. over 50 different waveforms, ranging from classic analogue sounds to more unique digital shapes

modal electronics designed 24db per octave four pole transistor ladder filter, with some very unusual morphing characteristics or 'polesweeping', enabling transition from four pole through bandpass to one pole 6db per octave, or anywhere in between

two lfo's, one per voice and one global

extensive modulation options

002r features a range of sequencing options - a built in 12 track, 12 row, 32 step sequencer with midi sync capabilities. sequences can also be transposed dynamically while running

a very highly featured arpeggiator with a wide range of different modes, including 'hold' mode, enabling arpeggiator-based sequences to be created

the modal electronics animator, which enables any control parameter on the 002 to be sequenced, enabling very complex filter transisitions, wave form changes and modulation matrix changes to be sequenced

ethernet port to connect your 002r to your network and enable updates via the internet (no more midi sysex dumps) and access to the modal electronics cloud features



superb ui, a great departure from the norm of synthesisers, featuring a very high quality 4.3" screen with wide viewing angle

12 'quick recall banks' are accessible directly from the front panel, enabling performing musicians to get rid of their set sheets and build set lists of presets, sequences and animations, all quickly accessible from dedicated front panel buttons. up to ten banks of quick recalls can be created, making live performance a doddle

vcf and vca envelope generators

four key modes - polyphonic, monophonic, unison and stack

voice control parameters are easily accessible using the modal quick navigate dials to quickly control page, parameter and value. these dials are also user assignable to single or multiple parameters to create complex macro knobs.

the power of 002r becomes really apparent when used with the modal web interface, no need for a plugin, use any html5 compatible web browser (chrome, safari, firefox etc.) on any platform that supports a browser - laptop, desktop, tablet or phone! for full control and editing of all of 002r's functions

pure analogue signal path from the oscillators onwards, no digital conversion.

optional digital output board providing multi voice outputs over usb (class compliant) with fx available q2 2015.

two audio inputs enabling audio processing from the vcf onwards plus external midi in and out

fits into a 3u 19" audio rack
