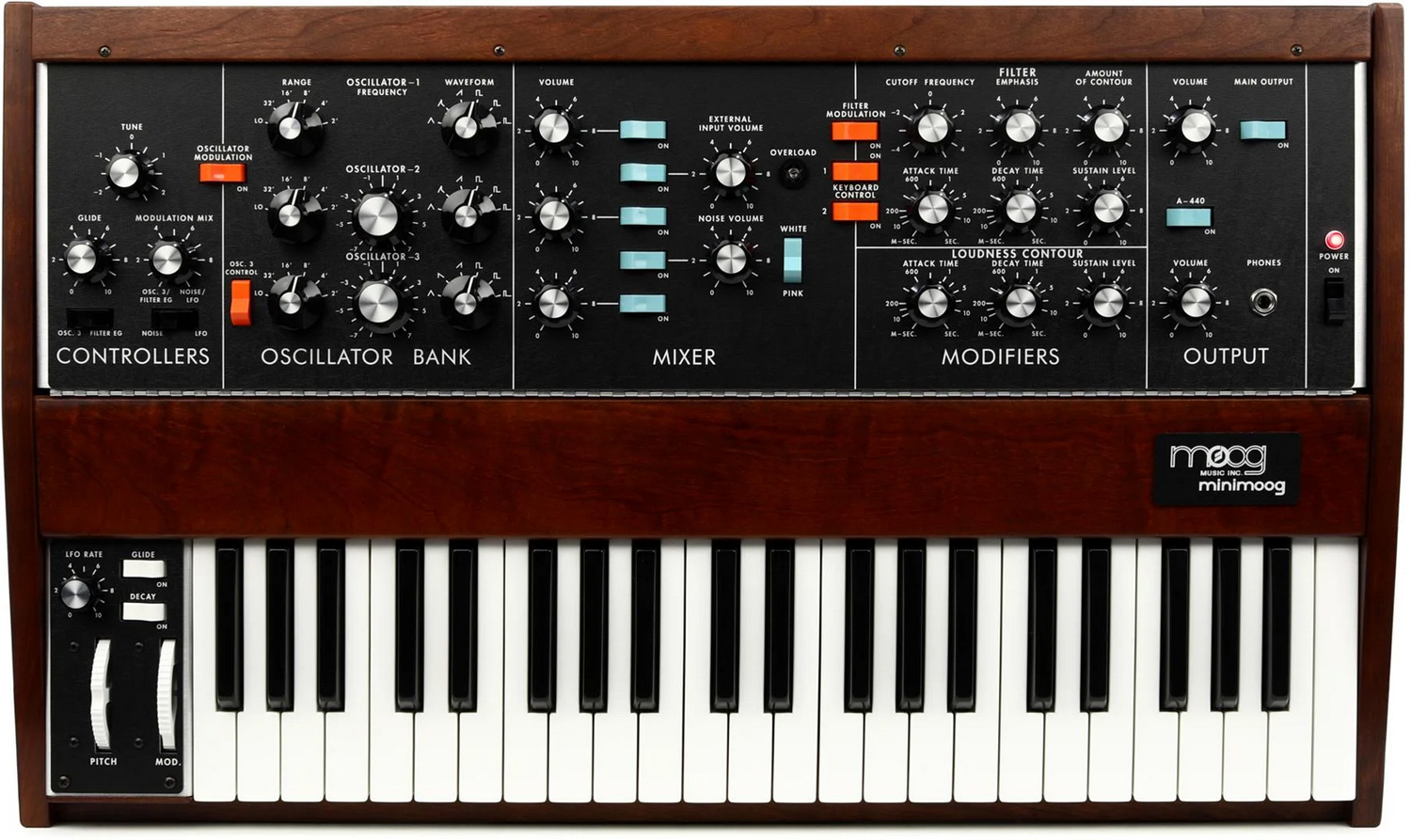

moog music minimoog: model d (2023 version) price : $4,999.00

originally released in 1970, minimoog model d was the world's first portable synthesizer and served as the archetype for all electronic keyboards that followed. the all-analog instrument gained acclaim for combining the colossal sound of the 1960s moog modular synthesizers with the accessibility of pre-wired modules-meaning that it could be played instantly and intuitively with no patch cables required. it was quickly embraced by a diverse roster of performers, with artists like herbie hancock, kraftwerk, rick wakeman, sun ra, piero umiliani, giorgio moroder, bernie worrell, and gary numan all shaping unique sounds and forging new musical genres using the instrument.

more than a half-century since its invention, minimoog model d is back in production at the moog factory in asheville, north carolina. an exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds and serves as inspiration for the next generation of electronic musicians.

the three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced appalachian cherry cabinet and hand-finished aluminum chassis. sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era minimoog model d.

while no changes have been made to the original sound engine or audio signal path, the 2022 minimoog model d includes a series of popular functional modifications that expand this legendary instrument's sonic capabilities. these modifications include a dedicated analog lfo with triangle and square waveshapes, a premium fatar keybed with velocity and after pressure available via top panel cv jacks with onboard trimpots, midi integration, and a mixer feedback modification which allows the minimoog model d to overdrive and scream with the turn of a knob. and, for the first time in its history, the minimoog model d now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes. this newest edition also includes updates to the midi functionality, allowing for improved modern studio integration.

hand-built to last a lifetime
at the moog factory in asheville, north carolina, every minimoog model d synthesizer is built by hand to its original factory specifications.

placing the utmost importance on high-quality materials, all components are carefully sourced and crafted to capture the indescribable feeling of the original minimoog model d. each unit that travels through moog's production floor sees identical component placement and through-hole design of the beloved 1970s minimoog model d in a hand-finished aluminum chassis, secured to a handcrafted appalachian hardwood cabinet.

"this attention to detail in materials and build allows us to connect directly to the legacy and character of this legendary instrument. the minimoog model d is more than just a collection of circuits in a box-it's a true musical instrument that is a joy to program and play. bob [moog] always recognized the importance of an instrument's feel, and we've gone to great lengths to honor his practices through the re-introduction and manufacture of this beautiful synthesizer."-steve dunnington, vp of product development at moog music

specifications:
number of keys: 44
keyboard range: f0 to c4
keyboard action: synthesizer (spring)
note priority: (low, high, last): user selectable
sound sources: 3x oscillators, noise generator and external audio input
oscillator frequency range: 0.1 to 20 khz (in six overlapping ranges)
oscillator stability: (short term) > 0.25 %

oscillator waveforms
triangle, triangle-sawtooth (oscillator-1, oscillator-2), reverse sawtooth (oscillator-3), sawtooth, rectangle, wide pulse and narrow pulse.

noise generator: white and pink
lfo rate: 0.05hz to 200 hz
lfo waveform: triangle (knob down); square (knob up)
external modulation input range: +10 millivolts to +2 volts
external modulation input impedance: 1meg ohms
filter type: voltage controlled low pass (ladder filter)
filter frequency range; 10 hz to 20 khz
filter slope: 24 db per octave
filter keyboard tracking: ⅓ ⅔, 1:1
contour attack time: 1 millisecond to 10 seconds
contour decay time: 4 milliseconds to >35 seconds
contour sustain level: 0 to 100% of contour peak
filter contour width: 0 to 4 octaves
voltage controlled amplifier: loudness contour dynamic range 80 db
external audio input voltage: +10 millivolts (min); +10 volt (max.)
external audio input nominal impedance: 1000k ohms
high audio output: typical voltage: 0.5 volts / maximum voltage: 4.2 volts (peak-to-peak)
high audio output nominal impedance: 3k ohms
low audio output: (30 db below high level): typical voltage: 15 millivolts
low audio output nominal impedance: 1k ohms
headphone output voltage: maximum 0.3 volts
headphone output impedance: 8 ohms
glide rate: 1 millisecond to 10 seconds
pitch bend range: (+/-) perfect 5th
after pressure cv output (¼"ts): 0 to +5 volts with user adjustable trimpot
pitch cv output (&fra14;"ts): -3 volts to +7 volts (c=0 volts)
gate output (&fra14;"ts): 0 to +5 volts
velocity output (&fra14;"ts): selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
loudness input (&fra14;"trs): 0 to +5 volts; +5 volts = unity gain (works with moog ep-3 expression pedal)
filter cutoff input (&fra14;"trs): 1 volt per octave of change (works with moog ep-3 expression pedal)
oscillator pitch input (&fra14;"trs): 1 volt per octave of change (works with moog ep-3 expression pedal)

modulation source input (&fra14;"trs):
ring=noise send; tip=modulation receive (this jack makes a normalled connection with no cable present.)

trigger input (¼:ts): +5 volt v-trigger activates both contour generators
midi input (5-pin din): note on, note #, pitch wheel, mod wheel
midi output (5-pin din): note on, note #, pitch wheel, mod wheel, velocity, aftertouch
midi thru (5-pin din): mirror of the midi in signal
external power supply: self-switching; 100-240 volts; 50/60 hz; <12 watt nominal consumption. (locking xlr-4 connector.)
dimensions: (with panel lowered): width: 28.625" / 727 mm, depth: 17.125" / 435 mm, height: 5.75" / 146 mm.
net weight: 32 lbs. / 14.5 kg.
storage temperature: 5f to 140f (2c to 60c)
nominal operating temperature: 10 - 35 c (50 - 95 f)
operating temperature: 10 - 50 c (50 - 122 f)

download the users manual here.
