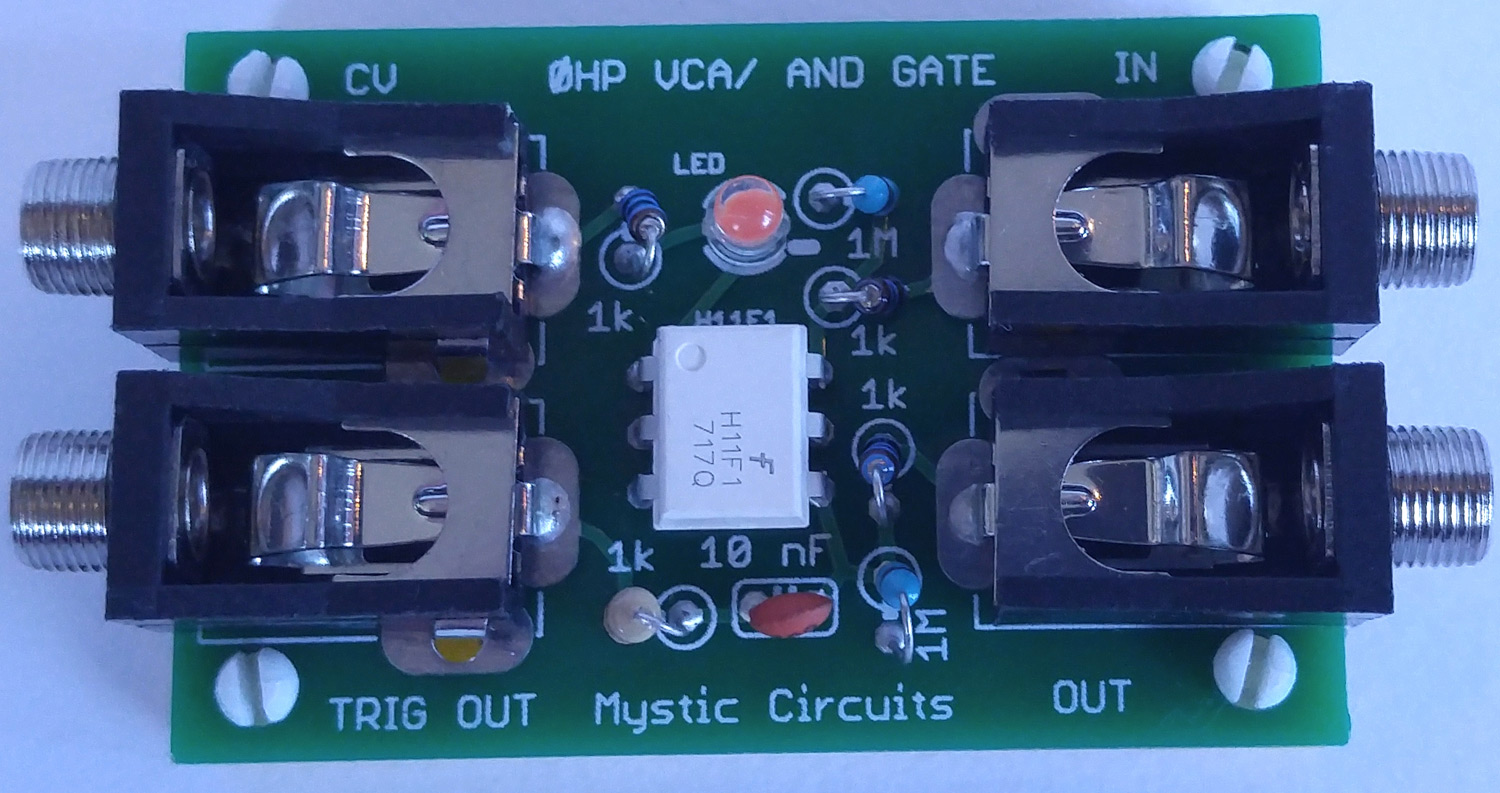

mystic circuits øhp and gate - vca price : $33.00

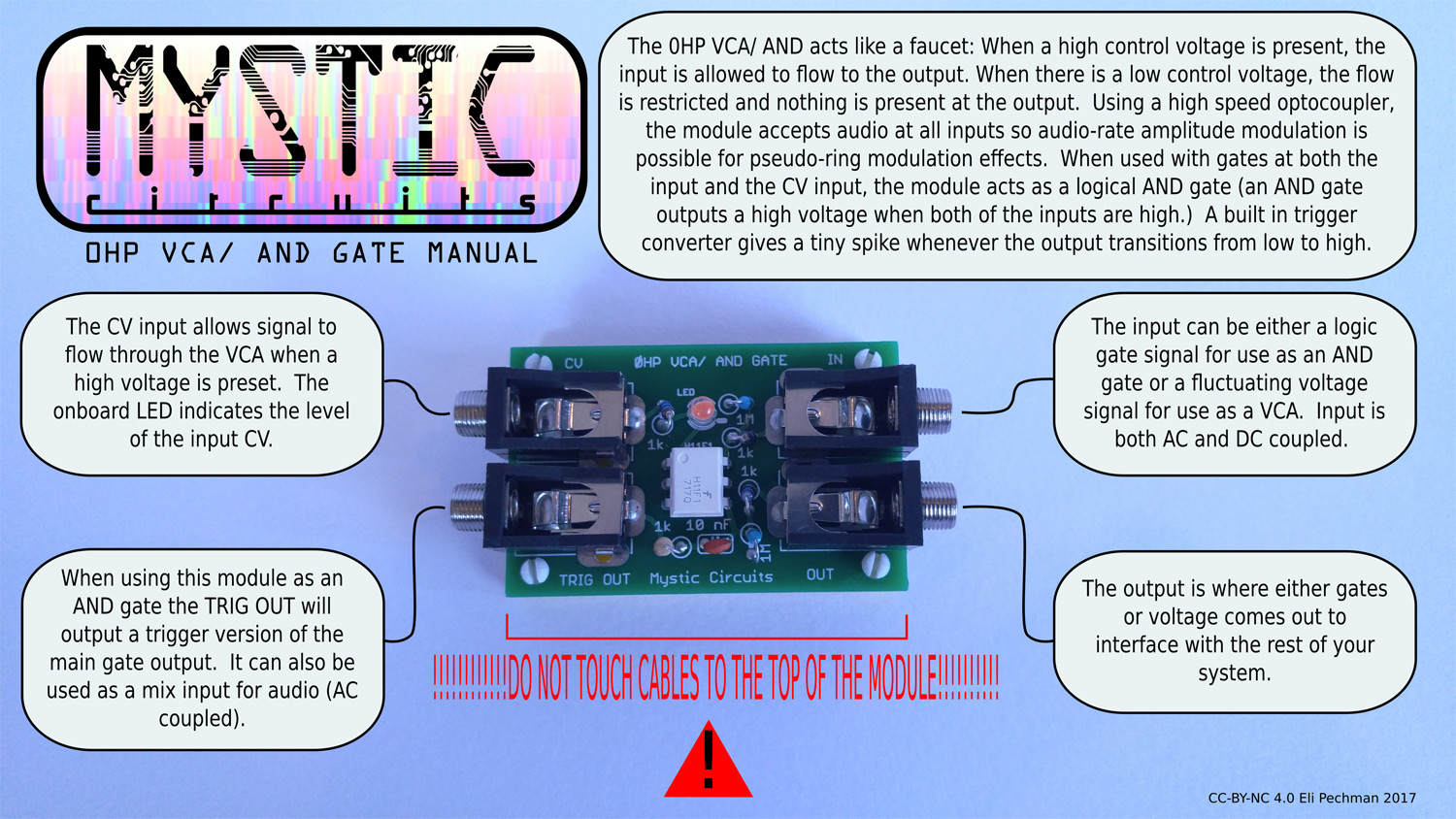

the øhp vca/ and acts like a faucet: when a high control voltage is present, the input is allowed to flow to the output. when there is a low control voltage, the flow is restricted and nothing ispresent at the output. using a high speed optocoupler, the module accepts audio at all inputs so audio-rate amplitude modulation is possible for pseudo-ring modulation effects. when used with gates at boththe input and the cv input, the module acts as a logical and gate (an and gate outputs a high voltage when both of the inputs are high.) a built in trigger converter outputs spike whenever the main outputtransitions from low to high.
