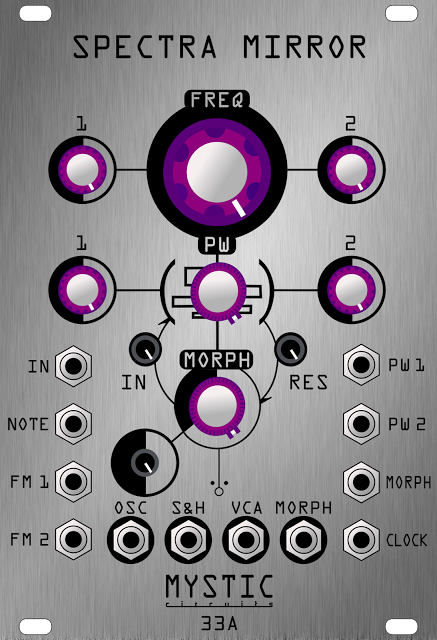

the spectra mirror is a resonant down-sampler tailored for use as a low pass gate. incoming audio can be completely attenuated or passed through unaffected by modulating the sampling frequency, width of thesampling clock or the on board through-zero vca. each control voltage input can be attenuverted, allowing the user to sculpt response to cv. the spectra mirror is also capable of an effect called "high-passsampling," which attenuates signals below the sampling frequency.
features: track and hold circuit allows for gradual increase of down-sampler effect. wide range internal oscillator with temperature compensated 1v/ octave tracking. 2 fm inputs, one with attenuverter and the other with attenuator. 2 pw inputs each with attenuverter. dedicated oscillator output. bipolar voltage control over resonance of downsampler. dedicated output for bipolar vca in resonance loop. "morph" output opens up range of sounds never before heard in a downsampler. external clock input. fm 1 input normalized to pw 1 and morph inputs to facilitate use as a low pass gate.
