noise engineering
cursus iteritas

price : $355.00

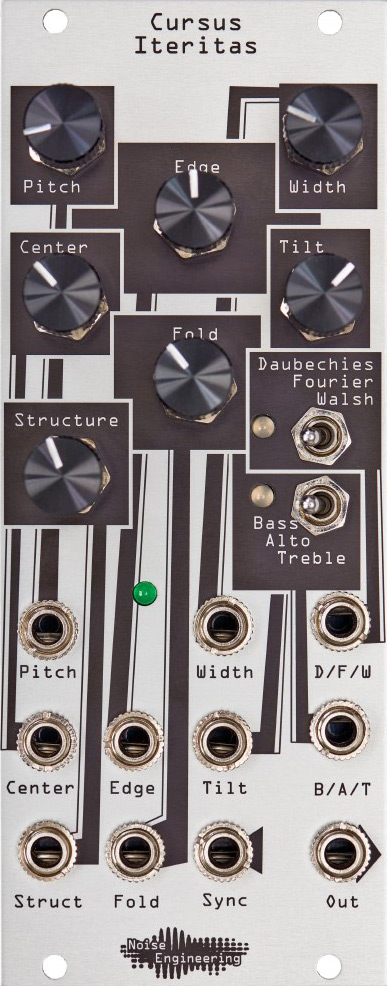

Cursus Iteritas

dynamically generated wavetable oscillator with multiple orthogonal functions. cursus iteritas is an oscillator that works from a dynamically generated wavetable. it gives the user spectral-like controls over three different modes based on different conceptualizations of frequency: fourier, which uses sine waves; daubechies, using wavelets, and walsh mode, using the walsh transform. cursus iteritas parametrizes a wide variety of sounds, but because the sounds are all based off of orthogonal functions, it has a musical tone structure and can produce an extremely wide variety of harmonic sounds.

specifications:
type: vco
size: 10hp
depth: 1.5 inches
power: 2x8 eurorack
+12 ma: 150 / 80 (if 5v enabled)
-12 ma: 5
+5 ma: 0 / 90

download the users manual here.
