percussa xmx price : $499.00

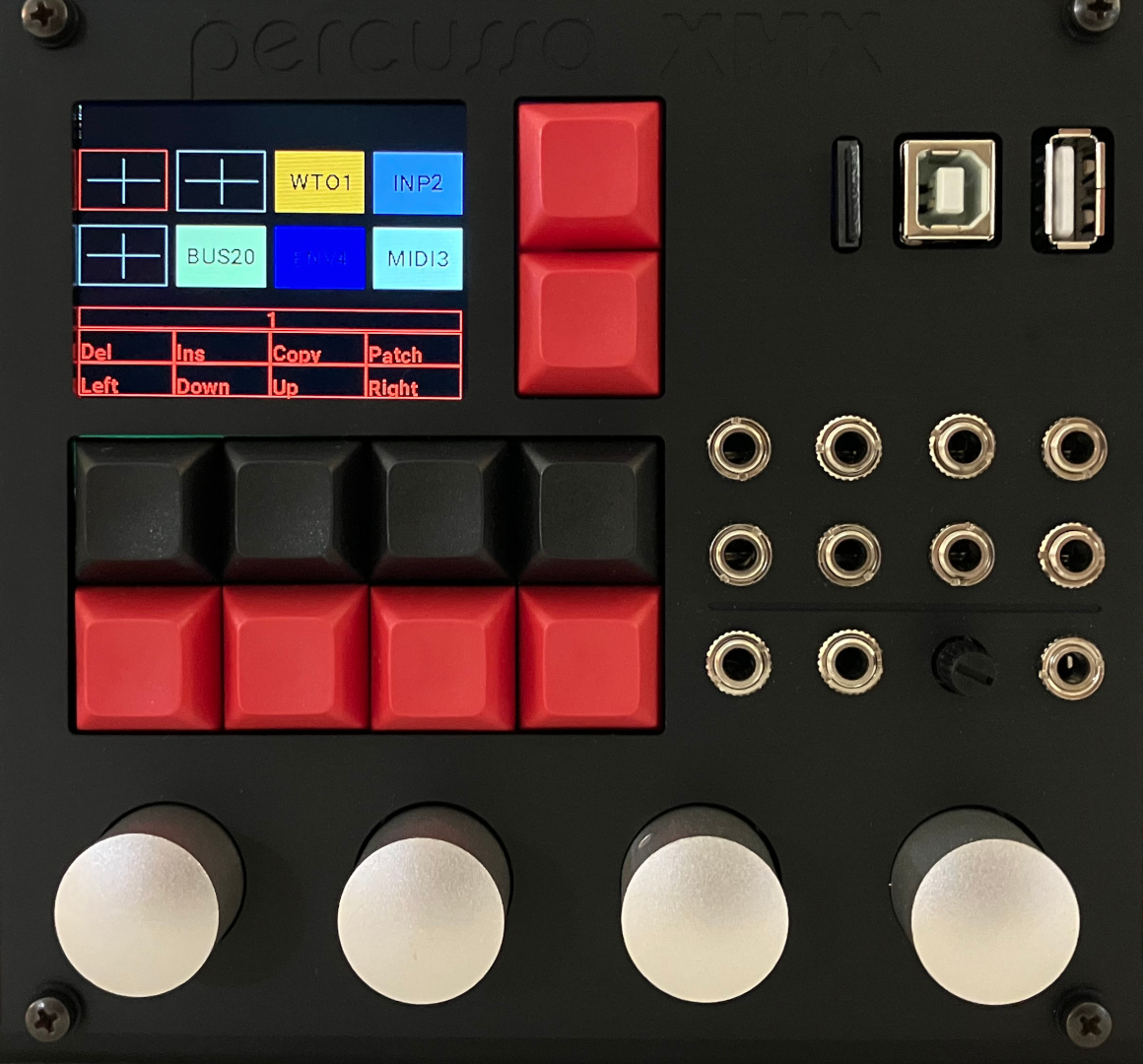

the xmx is the smaller brother of percussa's succesful ssp (super signal processor) eurorack dsp module, which has found its way into recording studios and live on stage around the world over the past years, enabling eurorack modular synthesists to build compact and powerful systems, for sound design, synthesis, effects processing, recording and live performance. with the xmx, percussa aims to make the synthesis and effects modules and features of the ssp available to a wider audience at an affordable price and smaller form factor.

features:
a digital modular synthesizer engine with built in patching system
a multichannel direct to disk recorder/sampler/playback engine
a multichannel audio interface via usb
midi-to-cv conversion for usb midi controllers
preset management system

specifications:
28 hp width, less than 30mm deep
~500ma @ 12v, ~100ma @ -12v, no 5v supply needed
aluminium cnc machined and anodized front panel
4 aluminium knobs/encoders with push button feature
8 audio/cv/trigger inputs, +/-5v
2 audio/cv/trigger outputs, +/-5v
stereo headphone output with analog volume control
all i/o 24bit resolution and 48/96khz sample rate
10 function keys with soft touch and silent action
2.4inch full colour ips wide angle/visibility display
quad core arm cortex a35 cpu @ 1.3ghz running linux (64-bit)
usb 2.0 host and device ports for midi (including mpe) controllers and multichannel usb audio
microsd card slot
expansion connector w/ i2c port
