pittsburgh modular cell 48 (includes single row hardware sides) price : $249.00
single row hardwood sides set price : $35.00
double row hardwood sides set (for two cases) price : $59.00

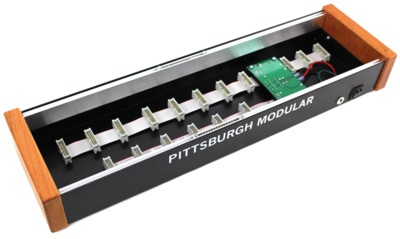

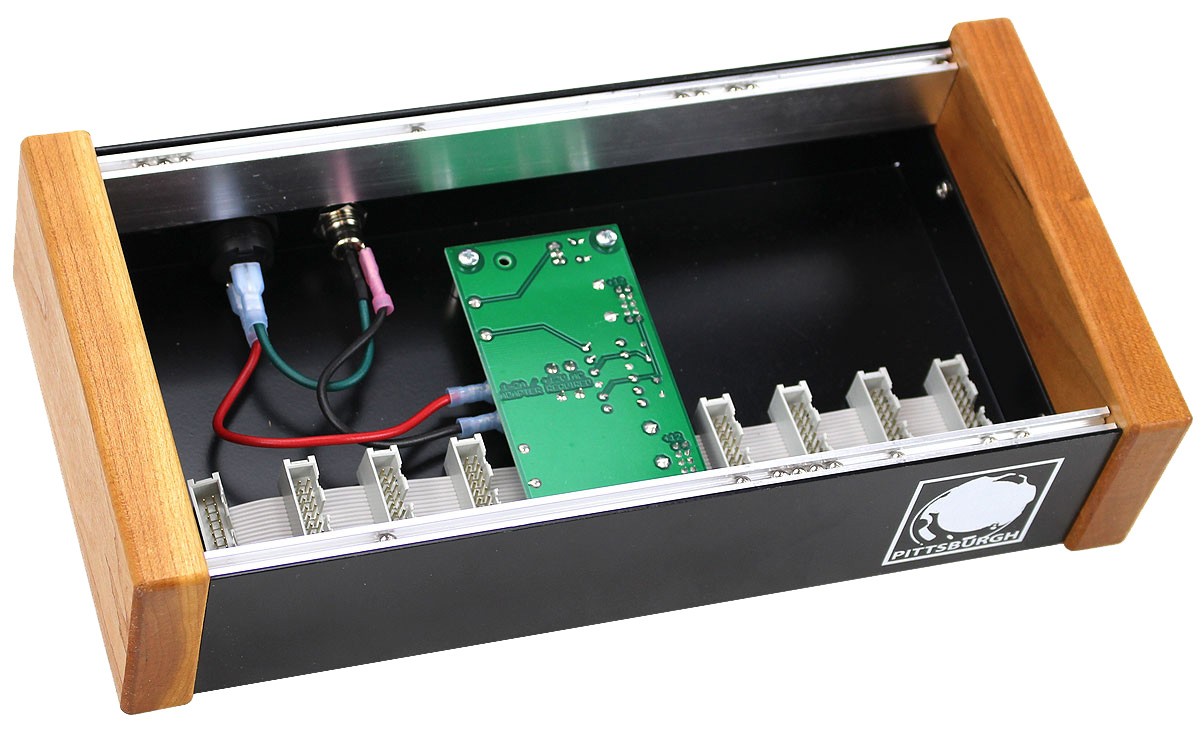

built like a tank, the pittsburgh modular cell dc cases are expandable, eurorack format synthesizer cases. the cases include a custom universal dc power supply, flexible power rails, and single row hardwood sides. a unique, low profile, heavy duty steel frame neatly houses up to 180hp of eurorack format synthesizer modules. the cell dc cases are a perfect solution for studio or desktop applications, yet more than tough enough to pack in a bag and take on the road.

cell [48] specs:
width: 242mm (48hp)
9 sliding square nuts per rail supports up to 9 modules
20 (4-40 size) panel screws included
8 module power headers
compatible with double row hardwood sides



hardwood sides:
hardwood sides are hand crafted from locally sourced hardwood trees. they are available in two different sizes and support up to two cell dc cases.

single row - simple rectangle sides that support a single cell dc case. single row sides are pre-drilled for easy assembly. a set of single row sides is included with each cell case.

double row - triangle shaped sides that support two cell dc cases. double row sides are pre-drilled for easy assembly and can be used standing up or laying down. double row wood sides are available separately

steel frame:
the frame is made from heavy 16 gauge steel and covered with a durable black powder coating. a power switch and 2.1mm universal power adapter jack are included on the back panel. cell[48] dc steel frame weighs 1.6lb. cell[90] dc steel frame weighs 2.8lb.

power supply:
the included pittsburgh modular dc power supply provides +12v @ 900ma, -12v @ 900ma, +5v @ 500ma of power. a custom flexible power rail delivers a full compliment of power and the eurorack bus system to the modules using standard 16 pin keyed power headers. the power board uses an external 15v dc 2.6a dc power adapter.

downlaod the manual here.
