pittsburgh modular cell 90 (includes single row hardware sides) price : $289.00
single row hardwood sides set price : $35.00
double row hardwood sides set (for two cases) price : $59.00

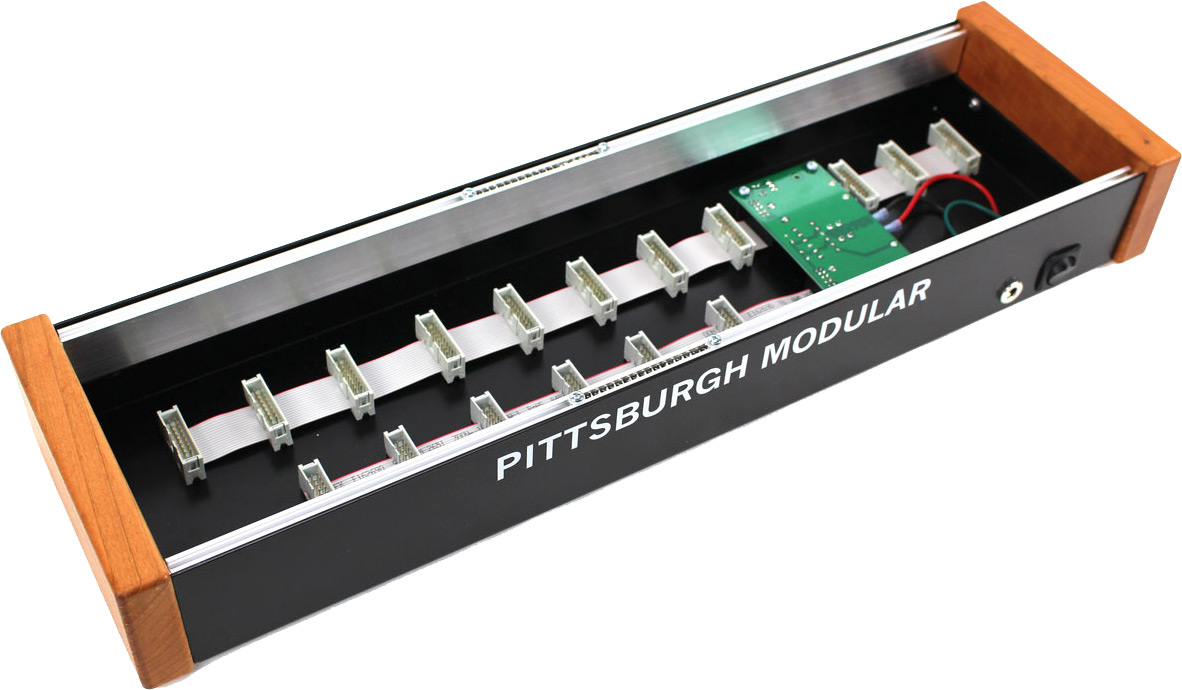

the pittsburgh modular cell [90] is an expandable, desktop eurorack case and power supply. a custom designed, heavy duty steel frame matched with replaceable pennsylvania cherry hardwood sides. the desktop cases are available in single and double row configurations. frames and wood sides are available separately to allow for easy expandability and customizing.

cell [90] specs:
width: 456mm (90hp)
available depth for modules: 52mm
available depth for modules (above power supply): 36mm
18 sliding nuts per rail supports up to 18 modules
40 (4-40 size) panel screws included
power: 850ma linear supply
12vac 2.0a ac power adapter
custom flexible power rail with 17 power headers
heavy 16 gauge steel
hand crafted pennsylvania cherry hardwood sides
rear mounted on/off switch
rear mounted 2.1mm universal power adapter jack
+5v adapter compatible
eurorack bus compatible



wood sides
hardwood sides are hand crafted from locally sourced pennsylvania cherry trees. they are available in two different sizes to support up to 2 metal frames. (larger sizes on the way)

single row - simple rectangle sides that support a single metal frame. single row sides are pre-drilled for easy assembly. a set of single row sides weighs 0.2lb.

double row - l shaped sides that support two metal frames. double row sides are pre-drilled for easy assembly and can be used standing up or laying down. a set of double row sides weighs 2.2lb.

steel frame
the frame is made from heavy 16 gauge steel and covered with a durable black powder coating. a power switch and 2.1mm universal power adapter jack are included on the back panel. cell[90] steel frame weighs 2.8lb.

power supply
the included pittsburgh modular power supply provides +12v @ 850ma and -12v @ 850ma of power. a custom flexible power rail delivers power for up to 17 modules using standard 16 pin power headers. the power board uses an external 12vac 2.0a ac power adapter.

download the users manual here.
