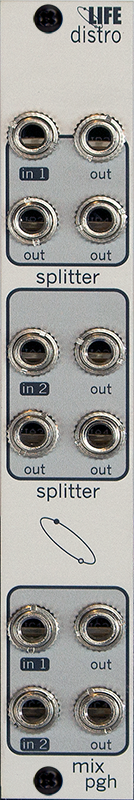

pittsburgh modular lifeforms distro price : $99.00

the lifeforms distro is an active audio and cv interchange with three independent sections for splitting and mixing. the outputs of each section are individually buffered and tuned to offer robust signal separation and unity gain pass-through.

the top two splitter sections create three identical, buffered copies of the incoming audio or cv signal. perfect for pitch sensitive cv signals. the mix section offers both mixing and splitting with a two channel unity gain mixer and a set of individually buffered outputs. this section can be used as a two channel mixer, buffered signal splitter, or both.

specifications
panel size: 4hp
depth: 20mm
power usage: +12v 20ma, -12v 20ma.
does not require +5v.
reversed power polarity protection.
