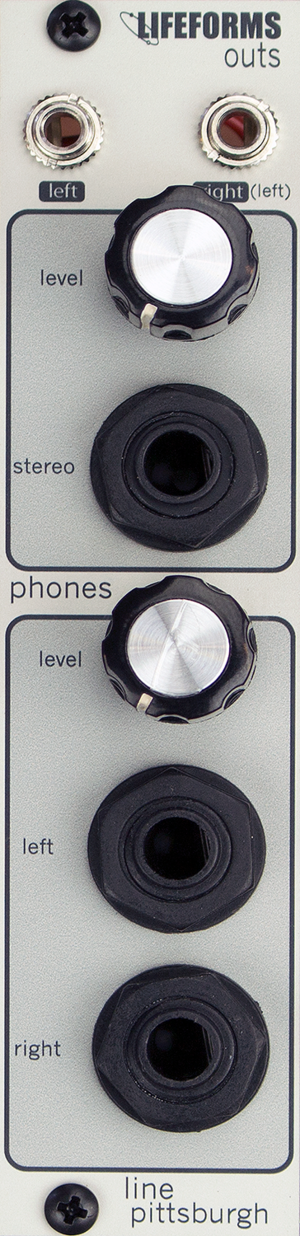

pittsburgh modular lifeforms outs
price : $99.00
|
|
the best way to get sound out of a modular. outs is a dual independent output module featuring a stereo ¼" headphone amplifier output and dual mono ¼" line level outputs.
left and right inputs are available. if only the left input is used, it is sent to both the left and right outputs.
specifications:
size: 6hp
depth: 39mm
power usage: +12v 20ma, -12v 20ma. does not require +5v.
|
