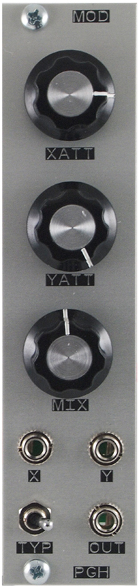

pittsburgh modular mod price : $109.00

the modulator offers 3 types of effects based on the standard ring modulator circuit.
type 1: ring modulator - outputs the sum and difference of the x and y inputs.
type 2: floating z modulator - outputs the sum and difference of the x and y inputs summed with the ambient voltage within the circuit.
type 3: linear amplitude modulator - outputs the sum and difference of the x and y inputs summed with the carrier (y) signal.

features include:
x and y inputs
ring modulator type switch
x and y input attenuators
x mix output attenuator used to mix the x input with the output of the modulation circuit.

size: 6hp
depth 35mm
power usage: 20ma
