back to main pittsburgh modular page


pittsburgh modular
move 104

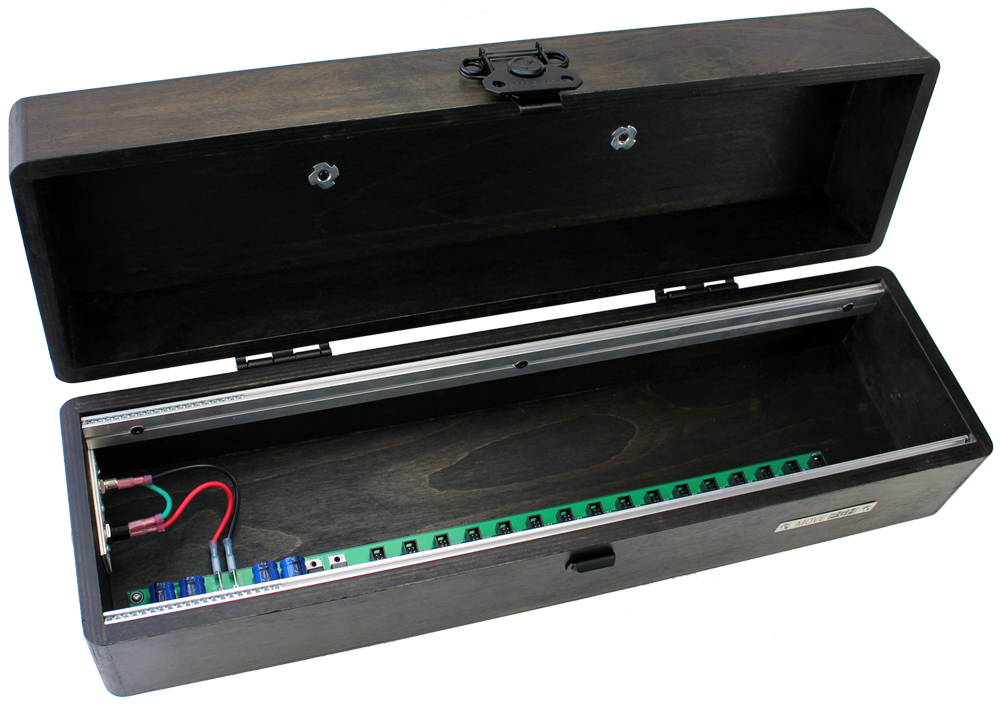

black; painted wood finish

price : $449.00






Move 104 (Black; Painted Wood Finish)

move 104

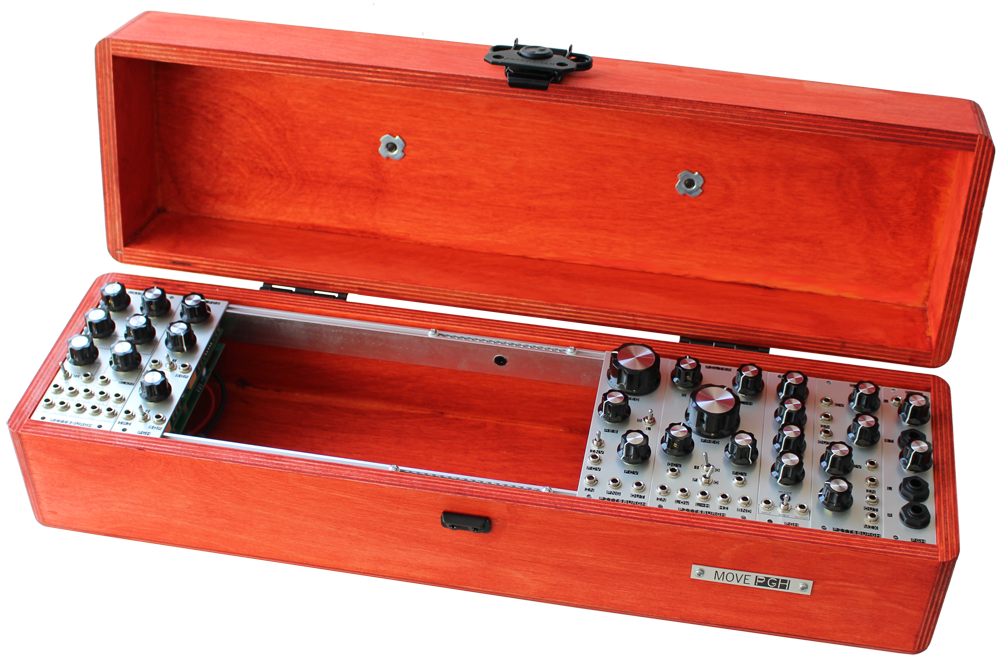

red; painted wood finish

price : $475.00

Move 104 (Red; Painted Wood Finish)

the pittsburgh modular move [104] black is a beautiful, fully featured, roadworthy eurorack case and power supply designed to safely house and power up to 104hp of eurorack modules.

handbuilt in pittsburgh using select ukrainian birch ply, the move [104] black case celebrates the classic pairing of synthesizers with beautiful hardwood. each case has been constructed and stained by our craftsmen to emphasize its unique beauty.

the strength of the ukrainian birch ply allows the move [104] black to stand up the the most rigorous road use. designers of skateboards, hockey sticks, furniture, and countless other products demanding a strong yet lightweight wood have chosen birch ply for years because of its unique combination of strength, weight, and durability.

each case includes a removable lid. when attached, the lid fits over the patch cables allowing a fully patched modular to hit the road.

a complete set of nickel plated steel corners is also included. the corners ship unattached with screws allowing the owner to easily install the corners if desired.

move [104] specs:
width: 528.5mm (104hp)
available depth for modules: 70mm
available depth for modules (above power supply): 62mm
20 sliding square nuts per rail supports up to 20 modules
40 (4-40 size) panel screws included
guitar amp style strap handle
secure twist latch
removable lid
8 nickel plated steel corners and necessary screws included
side mounted on/off switch
powered bus board supplies +12v / -12v / +5v
custom powered bus board with 16 keyed headers
eurorack bus compatible bus board
side mounted 2.1mm universal power adapter jack
12vac 2.0a ac power adapter

power supply
the included pittsburgh modular power supply provides +12v @ 850ma, -12v @ 850ma, and +5v @300ma of power. a combined power supply and bus board delivers power for up to 16 modules using standard 16 pin, keyed power headers. the power supply uses an external 12vac 2.0a ac power adapter.
