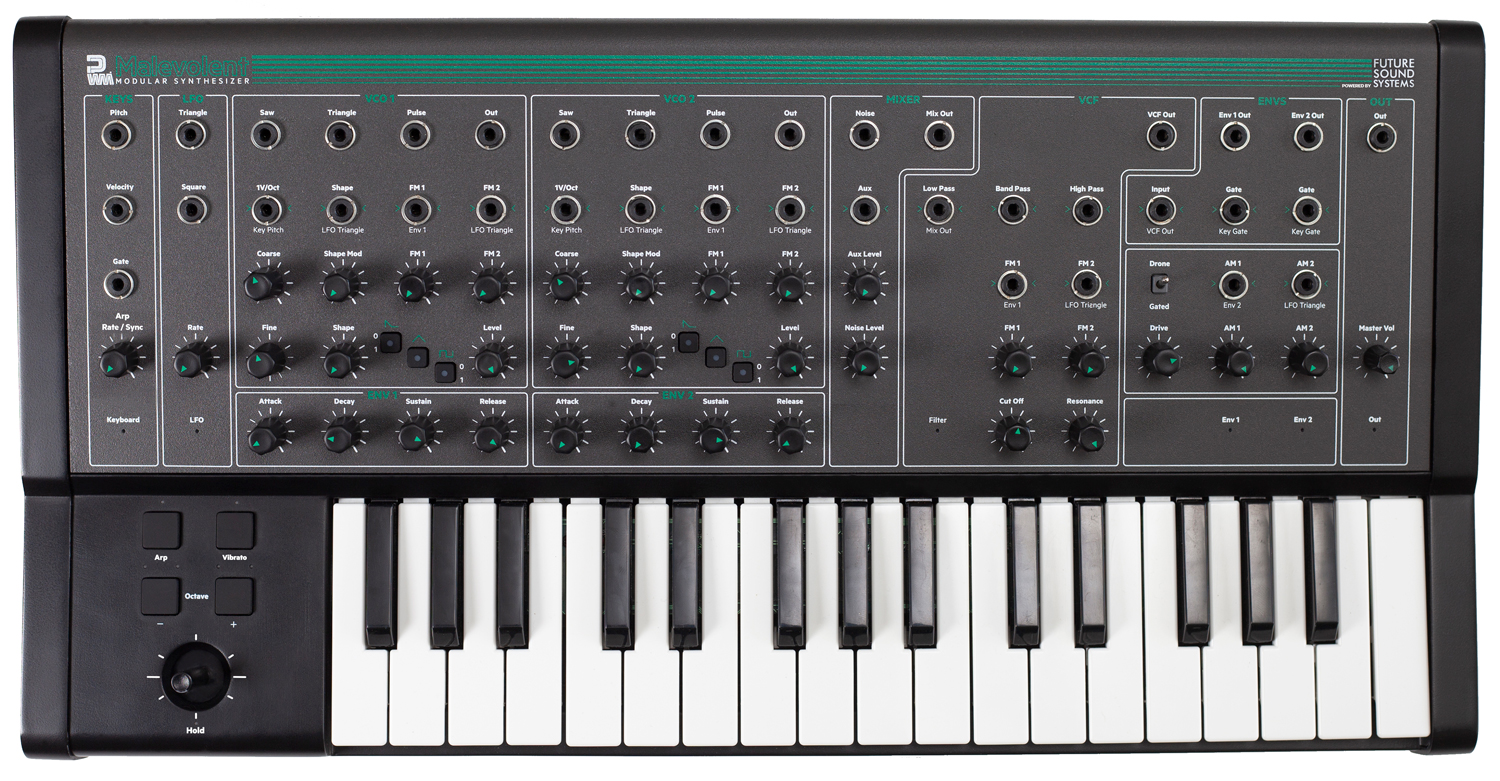

specifications:
pure analogue signal path designed by future sound systems
pure vcos
19 outputs and 19 inputs for 3.5mm mono jack cable patching
normalised signal path for immediate sound malevolence
additional rear panel line out
additional headphone out
2 voltage controlled oscillators
saw / triangle / pulse outputs plus mix for each oscillator
1v/oct pitch control input
shape control / pulse width modulation input
2x frequency modulation inputs
coarse / fine tune control
shape mod amount control
fm1 and 2 mod amount controls
shape control
selectable waveforms for the mix output
individual osc level control
lfo (low frequency oscillator)
triangle / square wave outputs
rate control
2x envelopes
individual adsr controls for each envelope
individual gate inputs
individual envelope outputs
multi-mode 2 pole vcf (voltage controlled filter)
low pass / band pass / high pass individual inputs
2x frequency modulation inputs with amount controls
filter cutoff
filter resonance
mixer
noise w/level control
aux input w/level control
vca (voltage controlled amplifier) with overdrive control
compatible with eurorack standard 1v/oct gear
monophonic and patchable allowing individual pitch control of each vco and gate control of each envelope
usb bus-powered
midi in / out
headphone out
line out
analogue clock in & out
usb-midi to 1v/oct cv & gate conversion
all pitch and gate control is fully analogue
analogue clock in / out
multi-function joystick control
left / right for pitch bend
performable portamento
performable vibrat (this is in addition to the analogue lfo)
latching hold mode
arpeggiator
6 arpeggiator types: up, down, up/down 1, up/down 2, played & random
auto clock sync: detects analogue / midi or usb-midi clock and synchronises the arpeggiator automatically, selectable sync rates when clock detected
rate / sync control
latch
6 octave range
analogue / midi / usb-midi clock output when arpeggiator is running
