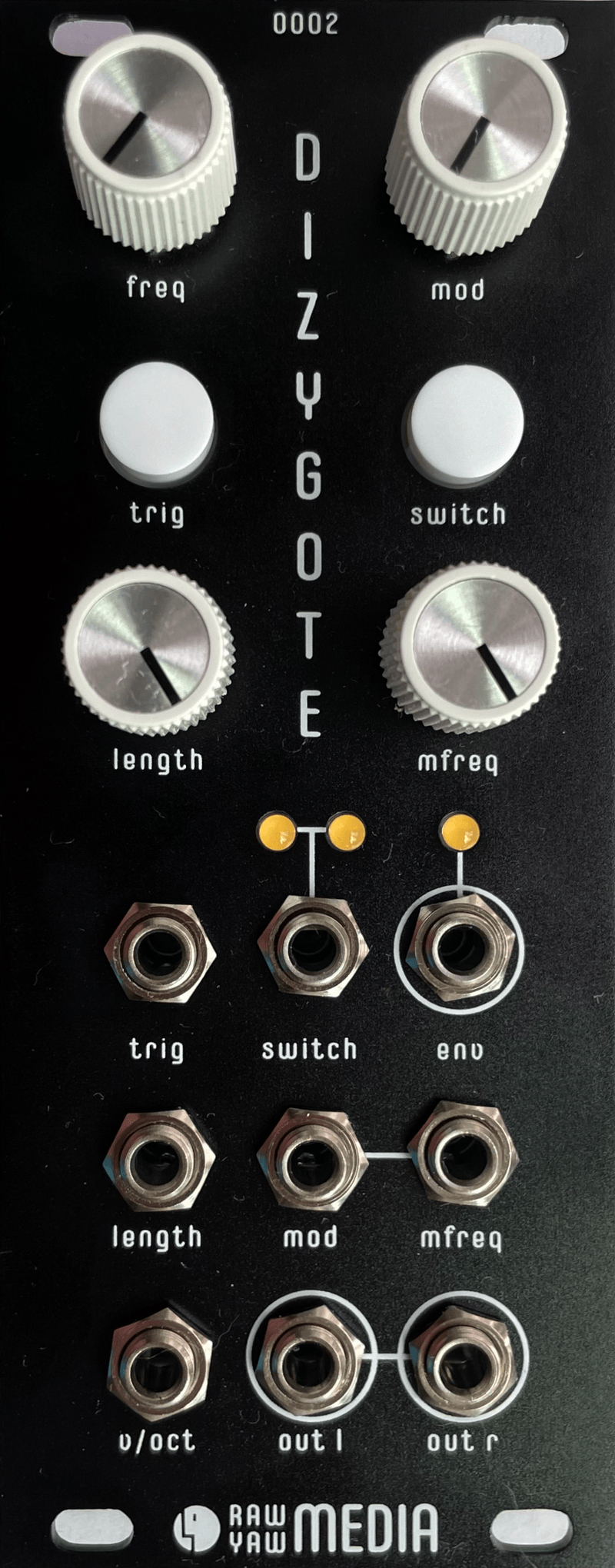

raw yaw media dizygote: a-side/b-side digital oscillator price : $229.00

the dizygote is an a-side/b-side digital oscillator with a built-in envelope generator. the a-side builds harmonies with a square waveform and frequency modulation. the b-side distorts a sine waveform with phase modulation.

input
trig - button and gate in to trigger oscillator amplitude envelopes switch - button and gate in for toggling between the a and b sides length - knob and cv in for changing the envelope length mod - knob and cv in for changing the phase and fm modulation amounts mfreq - knob and cv in for changing the phase and fm modulation frequencies freq - knob for setting the oscillator frequency v/oct - voltage per octave cv for modulating the oscillator frequency

output
out l and out r - audio output env - cv envelope out

specifications:
100 ma +12v 40 ma -12v
10 hp
35 mm deep
