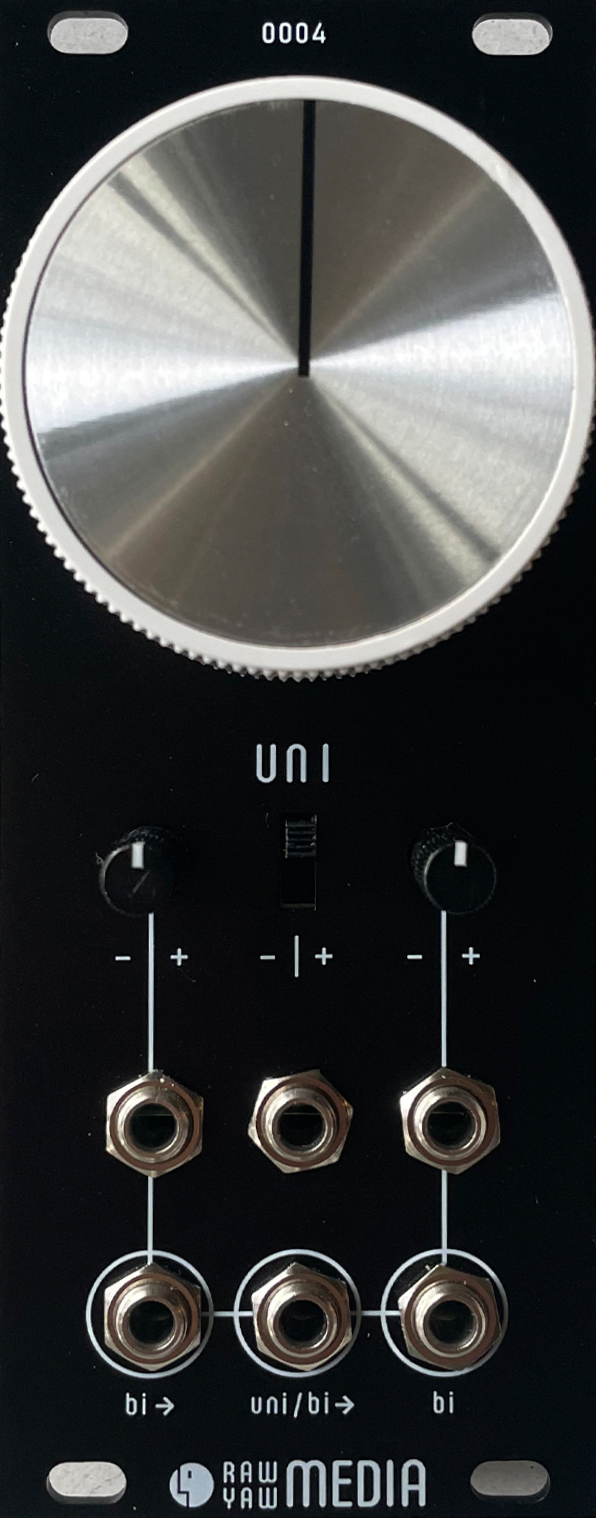

raw yaw media uni: big knob price : $89.00

the uni is a triple attenuverter utility module designed to give cases gigantic macro control knobs.

input
cv inputs 1 and 3 - cv input for bidirectional attenuation. when input cables aren't plugged into these jacks, 5v reference signals will be used. cv input 2 - cv input for either unidirectional or bidirectional attenuation. when an input cable isn't plugged into this jack, a 5v reference signal will be used. switch - toggles cv input 2 between unidirectional and bidirectional attenuation.

output
cv outputs 1, 2 and 3 - attenuated cv output. if no cables are plugged into an output jack, it is summed into the subsequent output jack.

specifications:
25 ma +12v 20 ma -12v 0 ma 5v
10 hp
27 mm deep
