the sound and control of a jx-3p, the size of a book
the roland boutique jx-03 module continues the legacy of the jx-3p synth. the original model was launched when button-driven interfaces were popular, so it was designed to give immediate access to preset sounds.
it was actually highly programmable though, especially when used with the optional pg-200 controller that added 24 rotary knobs for instant sonic sculpting. the limited-edition 4-voice jx-03 inherits all 24
knobs from the pg-200, as well as the distinctive jx tonal character. we've also added some extras not present in the jx-3p including new waveforms, expanded dco range and cross modulation options. you can even
slide the jx-03 into the optional k-25m keyboard unit for a self-contained, go-anywhere synth experience.
jx-3p sound. built-in controller.
often described as a forgotten classic, the jx-3p was all about instant access to big sounds, with a simple button-driven interface rather than lots of knobs and sliders. when used with the optional pg-200
controller however, the power of the highly programmable engine was revealed. the new jx-03 module recreates the panel layout of the pg-200 - including all 24 knobs - giving direct and instant access to the
versatile synth architecture.
additional sound-shaping options
like the other members of the roland boutique range, we also added a few subtle improvements that weren't found on the original models. the jx-03 benefits from extra waveforms and extended range for both dcos as
well as extra waveforms for the lfo. the second dco also gets extra cross modulation options. these additions further expand the sound creation possibilities of the battle-tested jx engine.
develop your ideas with a 16-step sequencer
the onboard 16-step sequencer is a sonic scratchpad that lets you try out new ideas without bringing lots of gear - it can even be used without a keyboard. and if there's no keyboard connected, the ribbon
controller lets you preview the sound, making it an ideal way to program patches quickly and easily.

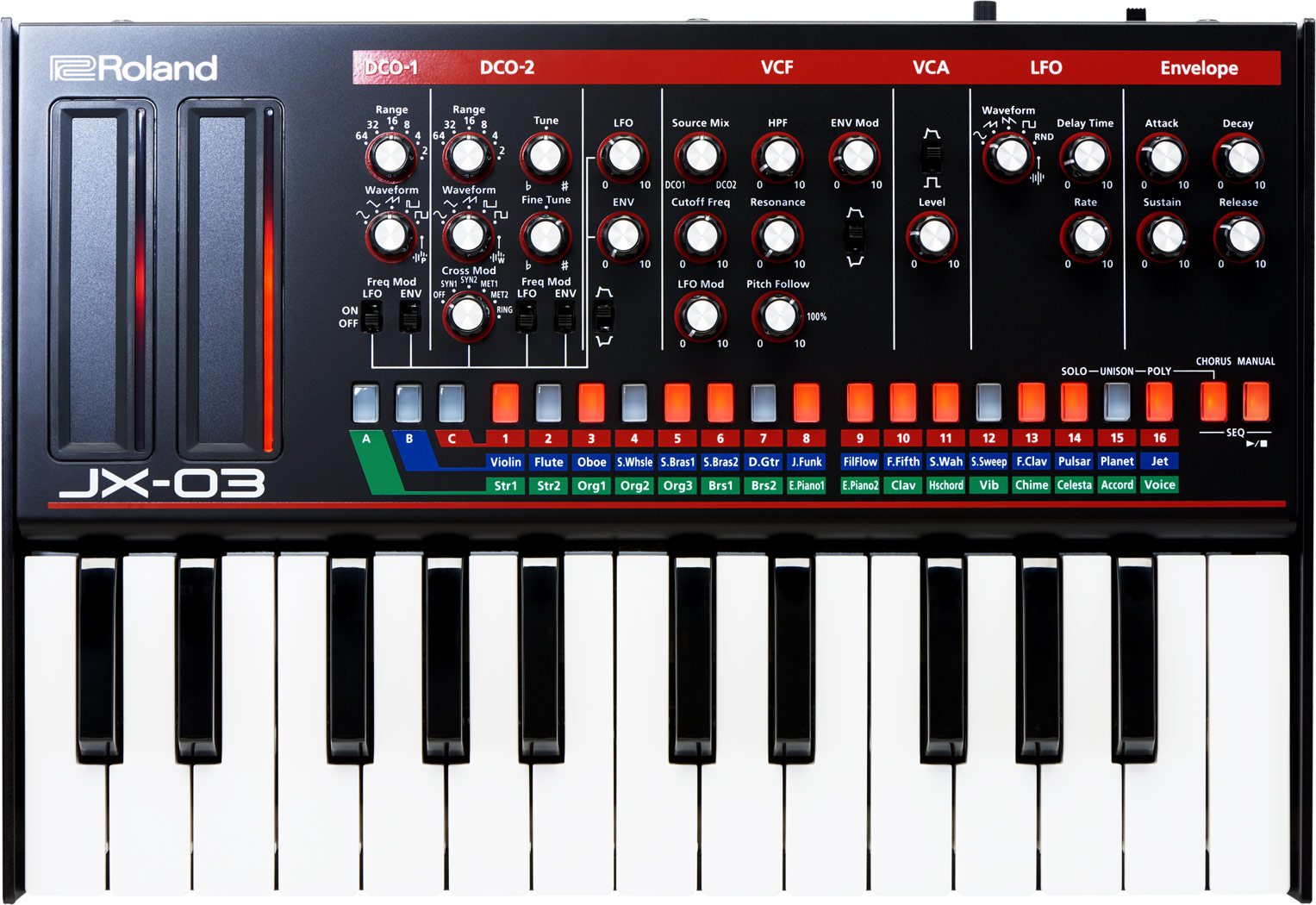

works with optional k-25m keyboard unit
the jx-03 works especially well with the k-25m, an optional 25-key velocity sensitive keyboard that takes your music making to the next level. once docked in the keyboard, the module's front panel can be tilted
for convenient access to the knobs and sliders.
chain mode
the original jx-3p was a powerful synth featuring 2 digitally controlled oscillators for each of its 6 voices. the jx-03 features a chain mode that allows you to connect two jx-03 modules using the midi ports
and create one, 8-voice synthesizer. adding additional modules adds another 4 voices of polyphony with each module. this is especially great when controlling the jx-03 from a larger external keyboard. you can
even edit the sound from the master module and control both units. great for realtime filter sweeps and envelope adjustments.
battery or usb bus power
some of the best music is made away from the studio, so the module runs on 4 x aa batteries, ready for when inspiration strikes. alternatively, you can power the jx-03 via usb bus power.
usb audio interface for direct recording into your daw
the built-in usb port also functions as a high-quality 24bit, 44.1 khz audio interface, for a fast, simple and reliable way of recording directly to your daw application. you can keep your favorite patches and
sequencer patterns safe too, via the usb data backup function.
specs
maximum polyphony
4 voices
user memory
16
preset memory
32
controllers
volume knob
ribbon controllers 1, 2
dco-1 section
range select knob
wave form select knob
freq mod lfo switch
freq mod env switch
dco-2 section
range select knob
wave form select knob
cross mod select knob
tune knob
fine tune knob
freq mod lfo switch
freq mod env switch
lfo depth knob
env depth knob
polarity switch
vcf section
source mix knob
hpf cutoff knob
lpf cutoff knob
resonance knob
lfo mod knob
pitch follow knob
env mod knob
env mod polarity switch
vca section
mode switch
level knob
lfo section
wave form select knob
delay time knob
rate knob
env section
attack time knob
decay time knob
sustain level knob
release time knob
chorus section
chorus button
bank a, b, c buttons
patch number 1-16 buttons
manual button
power switch
effects
chorus
delay
step sequencer
16 step
16 pattern
nominal input level
input jack: -0 dbu
connectors
phones jack: stereo miniature phone type
output jack: stereo miniature phone type
input jack: stereo miniature phone type
midi (in, out) connectors
usb port: microb type (audio, midi)
power supply
rechargeable ni-mh battery (aa, hr6) x 4
alkaline battery (aa, lr6) x 4
usb bus power
current draw
500ma (usb bus power)
expected battery life under continuous use:
rechargeable ni-mh battery: approx. 6 hours
* this can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
accessories
owner's manual
leaflet "using the unit safely"
alkaline battery (aa, lr6) x 4
