sequential dsm01: curtis filter price : $179.00

big sound comes in small packages
dave smith's first-ever offering for modular synthesizer users is a big one-the dsm01 curtis filter, the very heart and soul of the dave smith sound. featured in everything from dave's vintage sequential synths to his recent cutting-edge instruments such as the prophet 12, the curtis tone is brash, saturated, and powerful.

plug it and play it

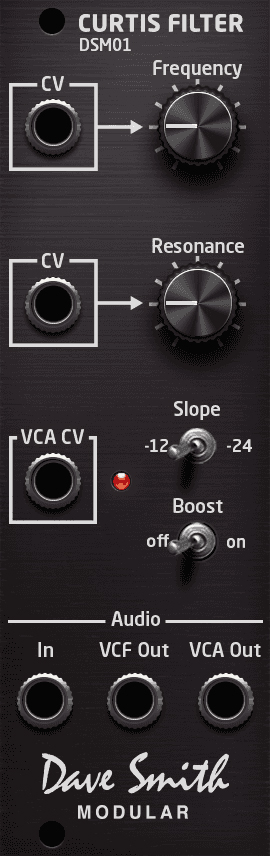

the dsm01 is a compact, 8 hp eurorack-format module. plug it into your modular system and that classic curtis sonic signature is instrantly within a patch chord's reach. the filter is a resonant low-pass design that can be switched between -12 db and -24 db operation and driven into self-oscillation in -24 db mode. a boost switch lets you overdrive the input stage for more aggressive coloration.

integrated vca
in addition to its curtis filter, the dsm01 provides its own responsive, low-noise vca with led cv indicator. there are two separate outputs-one pre-amplifier and the other post-amplifier. this not only gives you added signal routing flexibility, but also frees your system's existing vcas for other tasks.

give your modular system the edge
if you're a typical modular user, you're always on the lookout for new and interesting components to enhance your system. the dsm01 is an easy and affordable way to give your system a new sonic edge-with the filter that's brought some of the world's most in-demand synths their classic tone and vibe.

specifications:
in/out
1 cv in - frequency (3.5 mm jack) range: 0 to 10v
1 cv in - resonance (3.5 mm jack) range: 0 to 10v
1 cv in - vca (3.5 mm jack) range: 0 to 10 v
1 audio in (3.5 mm jack) +/-5v or 10v p-p
1 vcf out - pre-vca (3.5 mm jack)
1 vca out - post-vca (3.5 mm jack)
self oscillation in -24 db/octave mode, tracks at 1v/octave

power
internal power connector (ribbon cable included)
current draw: +12v @ 36ma, -12v @ 25ma

physical specs
1.59" w x 5.06" h (40.3 mm x 128.5 mm)
depth (measured from back of panel with power cable installed): 1.06" (27 mm)
mounting screws included
