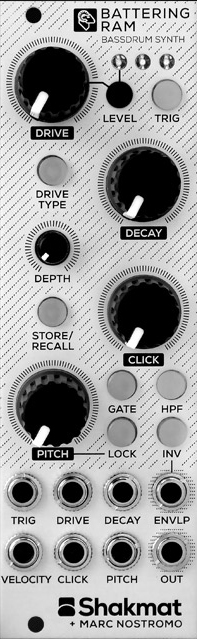

the battering ram is a bass drum synthesizer based on an original design by marc nostromo. this module offers precise control over various parameters, including decay, tuning, depth, click amount, and drive. these controls have been thoughtfully mapped to provide sweet spots at every combination of potentiometer settings. the
drive section can seamlessly transition between two distinct wave-shaping modes, ranging from smooth drive/compression to hard-clipping distortion for core music lovers. for smooth modular integration, there's an additional output that mirrors the amplitude envelope or its inverted shape.
the module also boasts other convenient features, such as storing and recalling potentiometer settings, a 3-pole high-pass filter, and the option to use gates instead of triggers. despite its compact size, the battering ram delivers a diverse range of bass drum sounds, from long sub-bass drums to aggressive techno
kicks.
features:
kick drum module based on an original design
expansive sonic palette spanning from 808-inspired sub-bass to assertively distorted kicks
dual drive options: a subtle fold for gentle saturation or a high-gain distortion with clipping
amplitude envelope output with inversion switch
cv control over different parameters including a v/oct pitch input
dynamic phrasing through velocity input
pitch locking functionality transforms the tuning potentiometer into an octave switch
gate mode
switchable 30hz 3 poles high pass filter
store and recall panel parameters feature
select bus compatibility with 16 presets
djtechtools rubber injected knobs
skiff friendly
