shakmat modular

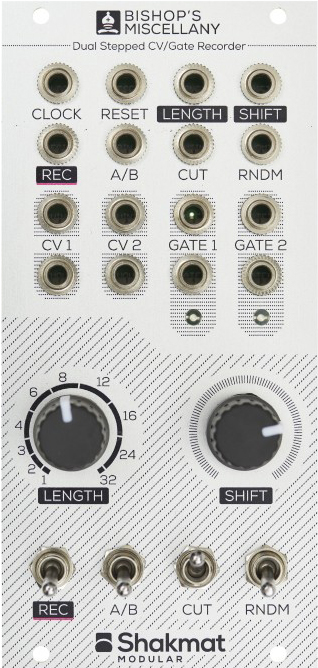

bishop's miscellany

price : $249.00



instant riff maker, that's how a beta tester described this module and we think it's pretty fair.

basicly, the bishop miscellany is a dual stepped cv / gate recorder. it means it records two cv’s and two gates on steps a bit like an analog shift register but with a lot more.

first, plug in your cv gate keyboard, your midi interface, your ribbon, your joystick or your favorite cv gate controller and record a sequence. if you re too lazy to play something, you can even use the internal random generator to feed the inputs. then, play the sequence and mangle it, it's that easy !

features:
dual stepped cv / gate recorder

variable length sequences (up to 32 steps)

shift parameter scanning differents segments in your original sequence.

ab switch allowing to record two different 32 steps sequences.

random value generator very handly to create random loops or to play sequences randomly

cut funtion hacking the gate out 1 for more dynamic phrases

cv inputs for length and shift functions

gate inputs for all the switch functions (record, ab, cut and random)

user replaceable firmware chip

high quality metal potentiometer with djtt double rubbered injected knobs

skiff friendly (22mm deep)

12 hp wide

20ma on +12v and 0ma on -12v

downlad the user manual here.
