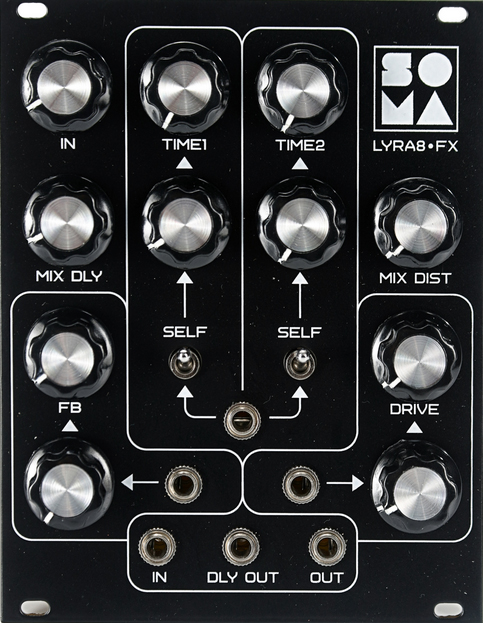

lyra8-fx is an fx processor that can give you a significant part of the mysterious lyra-8 sound. lyra8-fx consists of the fx section from the lyra-8, expanded with cv controls and packed into a eurorack
module. it contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. also, it packs a parallel
distortion with cv control of the drive. the distortion is after the delay. it's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool fxs which are hard to
describe.
it has a famous lyra-8 build quality - no smd, no twisted plastic shafts, no crappy parts.

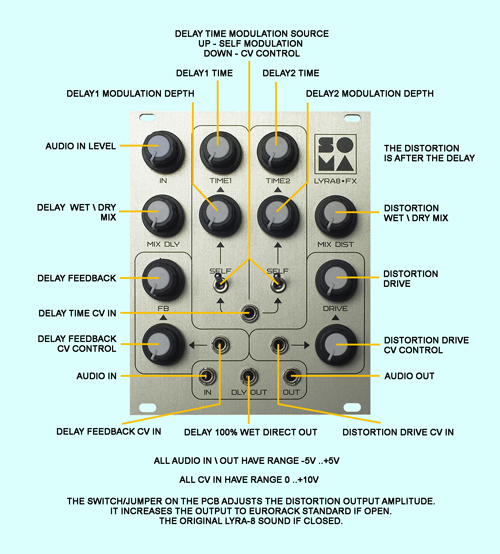

pots:
in volume
stage 1 delay time
stage 2 delay time
stage 1 delay time modulation depth
stage 2 delay time modulation depth
delay feedback
delay feedback cv amount
delay mix
distortion drive
distortion mixv
distortion drive cv amount
switches:
stage 1 delay time modulation source
stage 2 delay time modulation source
ins:
audio in
delay time cv
delay feedback cv
distortion drive cv
